7.4 Tabletop
Ensure that the tabletop has sufficient load-bearing capacity and
strength. If you want to make your own tabletop, use the dimen-
sions given in the diagram Appendix ( p. 171) as a template.
7.4.1 Completing a short arm tabletop

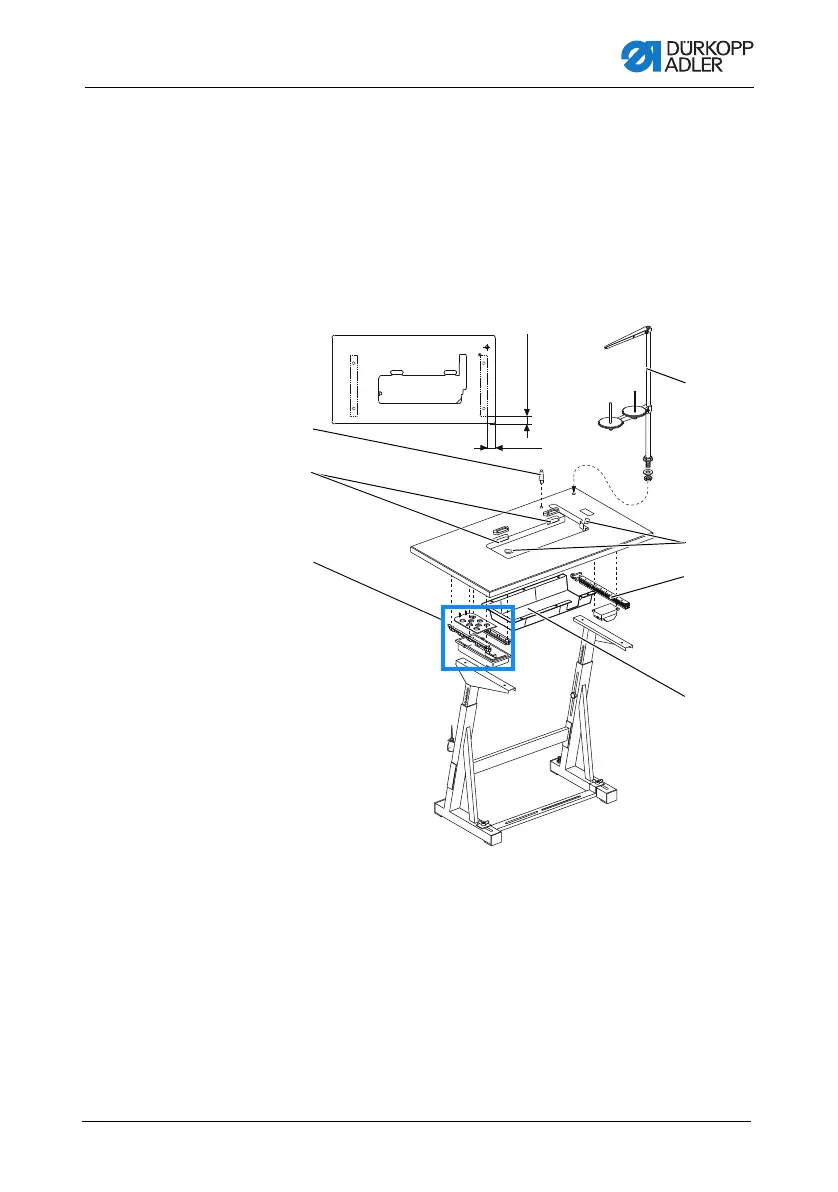

Fig. 53: Completing a short arm tabletop
(1) - Machine head support
(2) - Slot for the
Lower hinge part
(3) - Drawer
(4) - Oil pan
(5) - Cable duct
(6) - Corner slot
(7) - Reel stand
60 mm (500 mm)
40 mm
③
④
⑤
⑥
⑦
①
②

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
