DURKOPP ADLER 867 Durkopp Adler

Setup
Operating Instructions 867 - 04.0 - 03/2018 127
7.13.1 Assembling the compressed air maintenance
unit
The following parts make up the compressed air maintenance unit:
• System connection hose (length 5 m, diameter 9 mm)
• Hose connectors and hose clamps
• Coupling socket and coupling plug
Information
The compressed air maintenance unit is available under part
number 0797 003031.
Proper setting
The system pressure for the pneumatic unit is 8 – 10 bar.

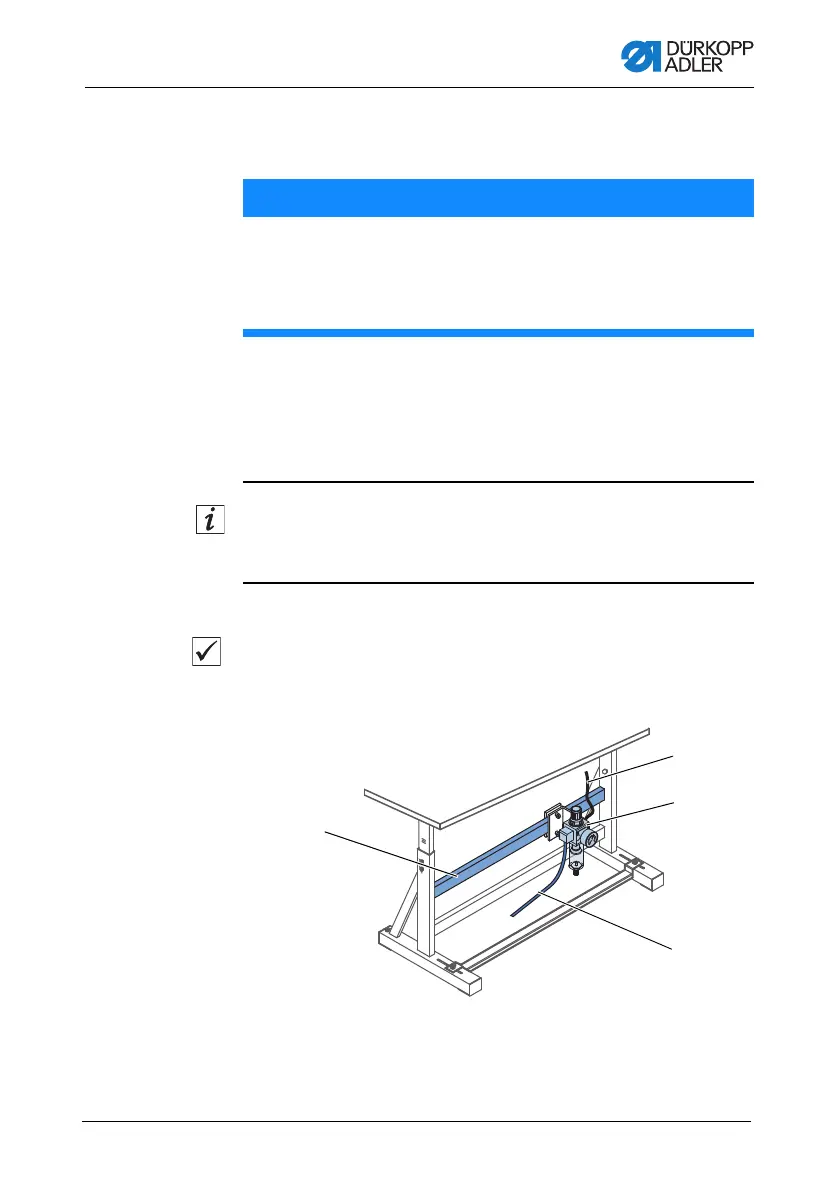

Fig. 77: Assembling the compressed air maintenance unit
NOTICE
Property damage from incorrect setting!!
Incorrect system pressure can result in damage to the machine.
Ensure that the system pressure is set to 8 – 10 bar before
assembling the compressed air maintenance unit.
(1) - Cross bar
(2) - System connection hose
(3) - Maintenance unit
(4) - Machine hose
0
2
8
4
6
10
①
②
③
④

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
