4.5.2 In 2-needle machines
2-needle machines are equipped with a 2nd Tensioning screws in
triangular arrangement for the left needle thread. The threading
procedure corresponds to that for the right needle thread ( p. 27).

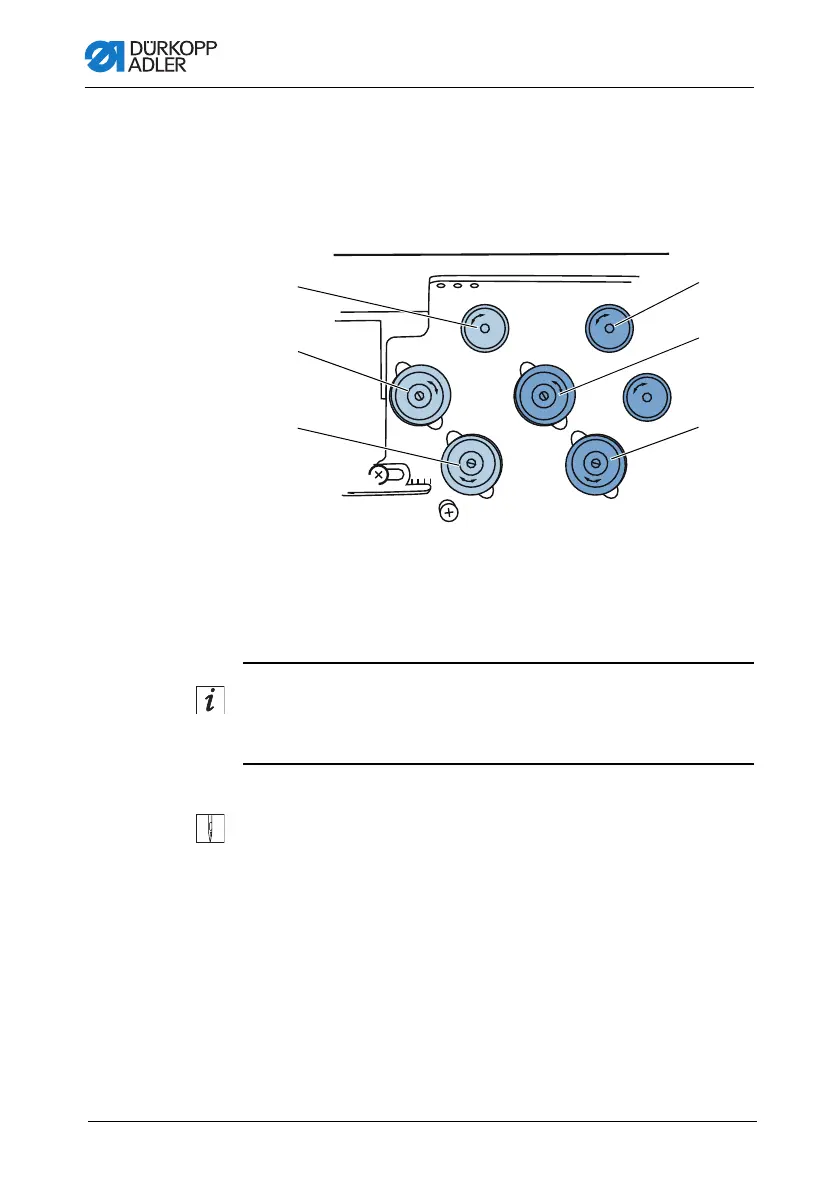

Fig. 10: In 2-needle machines (1)
Information
Threading the needle thread at the machine head requires that the
needle threads be fed properly from the reel stand (  p. 25).
To thread the right and the left needle thread in 2-needle machines:
1. Guide the right needle thread clockwise around the
pre-tensioner (6).
2. Guide the right needle thread counterclockwise around the
additional tensioner (5).
3. Guide the right needle thread clockwise around the main
tensioner (4).
4. Guide the left needle thread clockwise around the
pre-tensioner (1).
(1) - Pre-tensioner
(left needle thread)
(2) - Additional tensioner
(left needle thread)
(3) - Main tensioner
(left needle thread)
(4) - Main tensioner
(right needle thread)
(5) - Additional tensioner
(right needle thread)
(6) - Pre-tensioner
(right needle thread)
1234
+
–
+
–
+
–
+
–
+
–
+
–
+
–
①
②
③
④
⑤
⑥

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
