Setup
Operating Instructions 867 - 04.0 - 03/2018 101
7.4.2 Completing a long arm tabletop

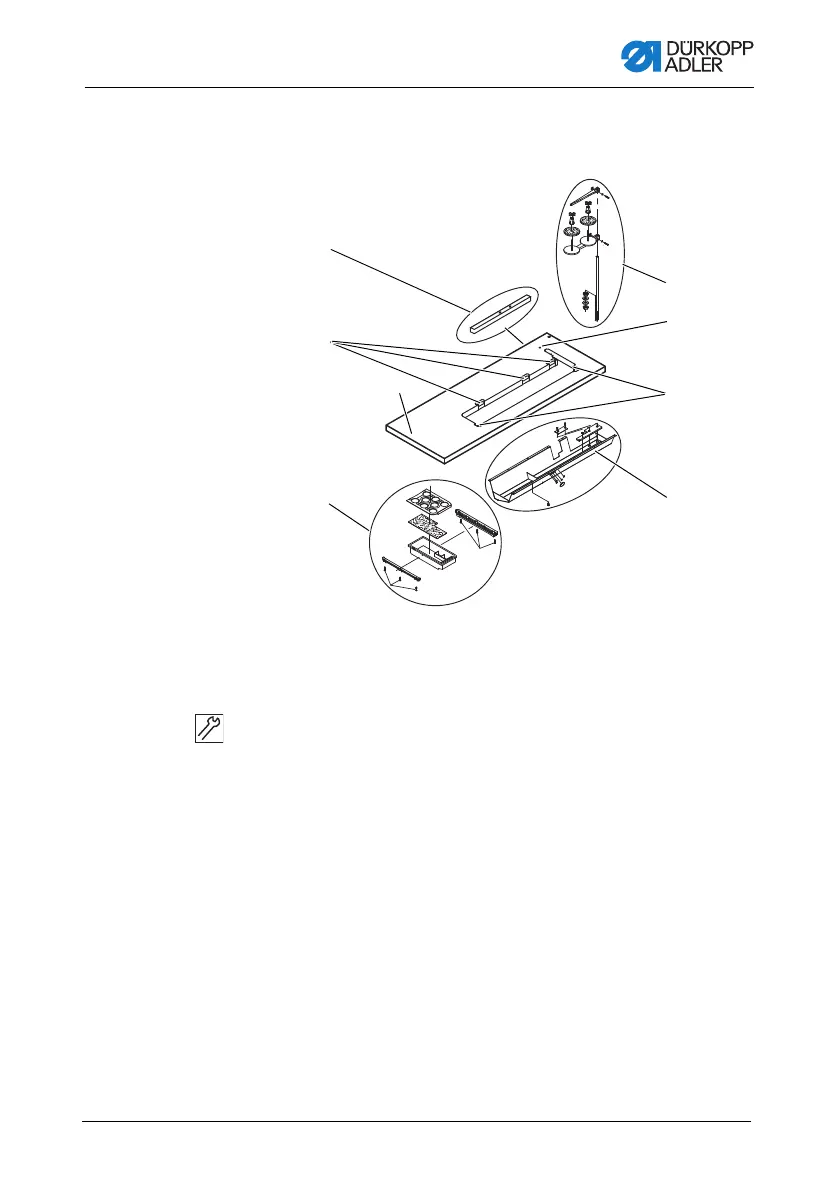

Fig. 54: Completing a long arm tabletop
To complete the long arm tabletop:
1. Screw the drawer (3) with the left-hand bracket to the under-
side of the tabletop.
2. Screw the oil pan (4) in place under the slot for the machine.
3. Screw the cable duct (1) to the underside of the tabletop.
4. Insert the reel stand (7) into the hole.
5. Assemble the reel stand (7) with the nut and the washer.
6. Tighten the thread reel holder and the unwinding bracket on
the reel stand (7) in such a way that they are exactly opposite
each other.
7. Insert the plug (6) in the hole.
8. Insert the lower hinge parts into the slots (2).
9. Insert the rubber corners into the corner slots (5).
(1) - Cable duct
(2) - Slot for the
Lower hinge part
(3) - Drawer
(4) - Oil pan
(5) - Corner slot
(6) - Hole
(7) - Reel stand
