Operation

Operating Instructions 867 - 04.0 - 03/2018 23

Important

Align the needle in such a way that the groove (3) faces the hook (4).

5. Tighten the screw (2).

4.3.2 In 2-needle machines

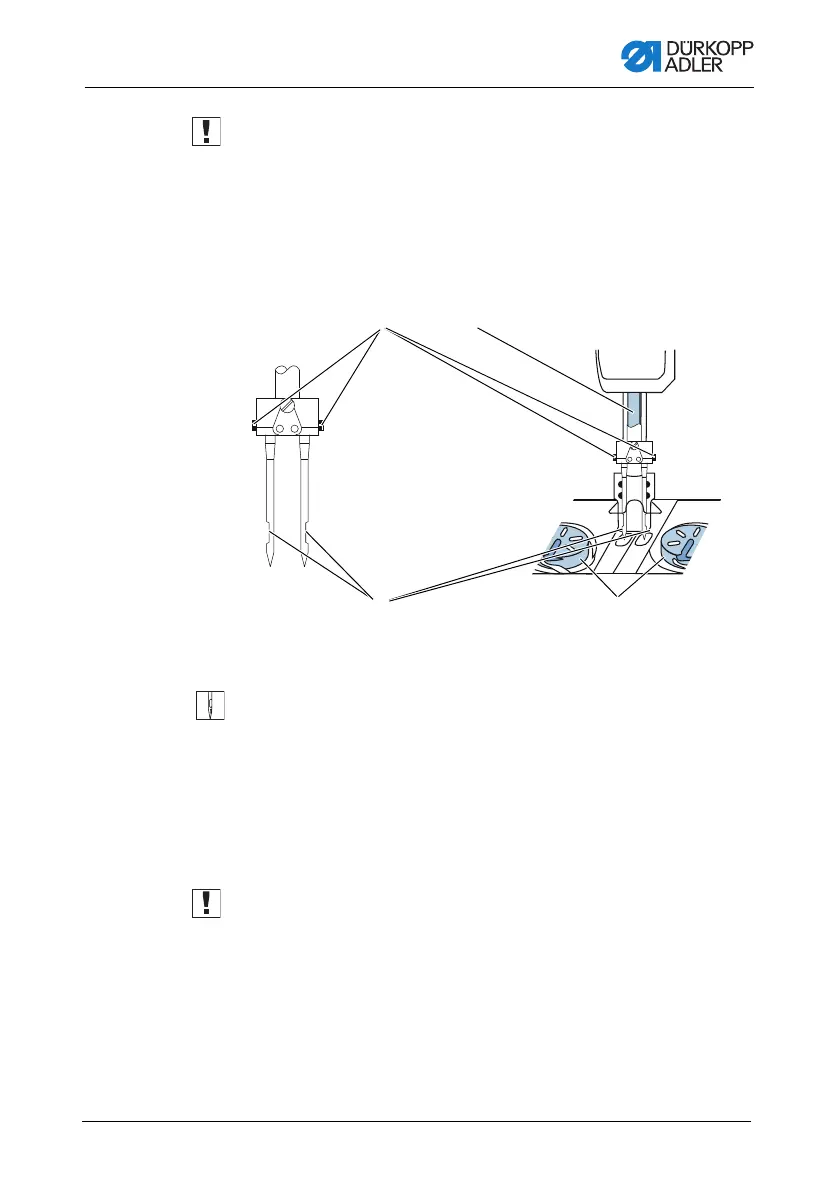

Fig. 4: In 2-needle machines

To insert or change the needle(s) on 2-needle machines:

1. Turn the handwheel until the needle bar (1) reaches the upper

end position.

2. Loosen the screws (2) on both sides.

3. Pull each of the needles out towards the bottom.

4. Insert new needles on both sides.

Important

When inserting the needles, align them such that the grooves (3)

face away from each other. Each groove (3) must point to the

hook (4) that belongs to this needle.

5. Tighten the screws (2) on both sides.

(1) - Needle bar

(2) - Screws

(3) - Grooves

(4) - Hook
