7.10 Assembling the knee lever / knee button
The machine has either a mechanical or electrical knee lever,
depending on subclass and equipment.
7.10.1 Assembling the mechanical knee lever

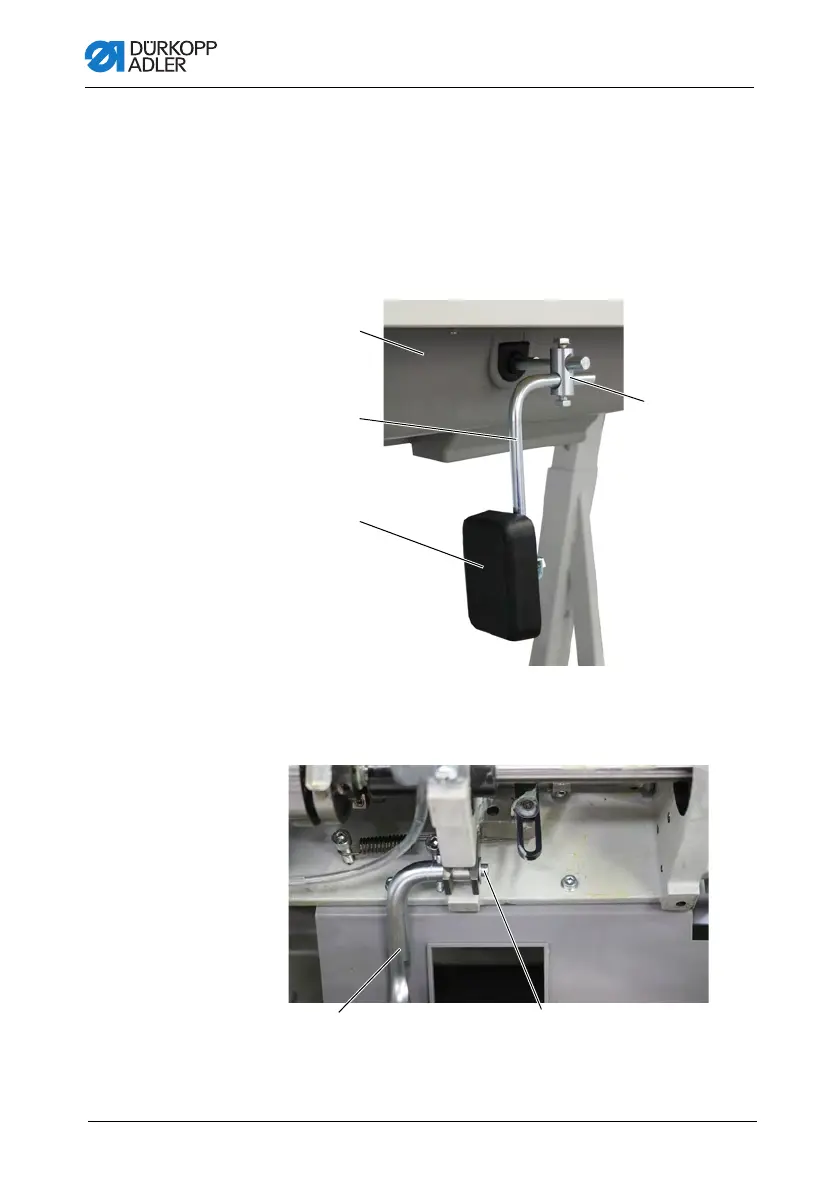

Fig. 62: Assembling the mechanical knee lever (1)
Fig. 63: Assembling the mechanical knee lever (2)
(1) - Oil pan
(2) - Rod
(3) - Knee lever
(4) - Connecting piece
(5) - Transmission rod (6) - Screw
①
③
②
④
⑤ ⑥

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
