Disturbances if hook distance is incorrect
After inserting a thinner needle:
• Missing stitches
• Thread damage
After inserting a thicker needle:
• Damage to the hook tip
• Damage to the needle
4.3.1 In 1-needle machines

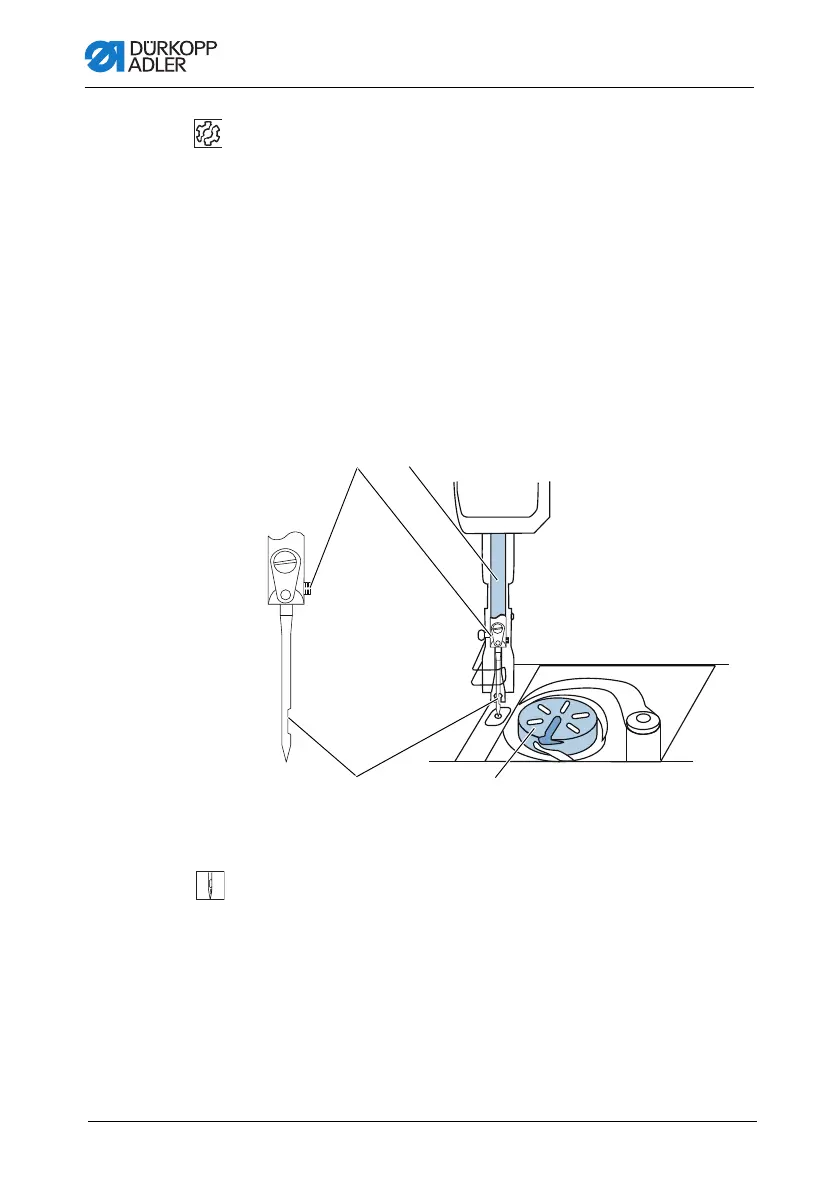

Fig. 3: In 1-needle machines
To insert or change the needle on 1-needle machines:
1. Turn the handwheel until the needle bar (1) reaches the upper
end position.
2. Loosen the screw (2).
3. Pull the needle out towards the bottom.
4. Insert the new needle.
(1) - Needle bar
(2) - Screw
(3) - Groove
(4) - Hook
①
②
③④
