Setup
106 Operating Instructions 867 - 04.0 - 03/2018
7.7.2 Assembling the pedal and setpoint device

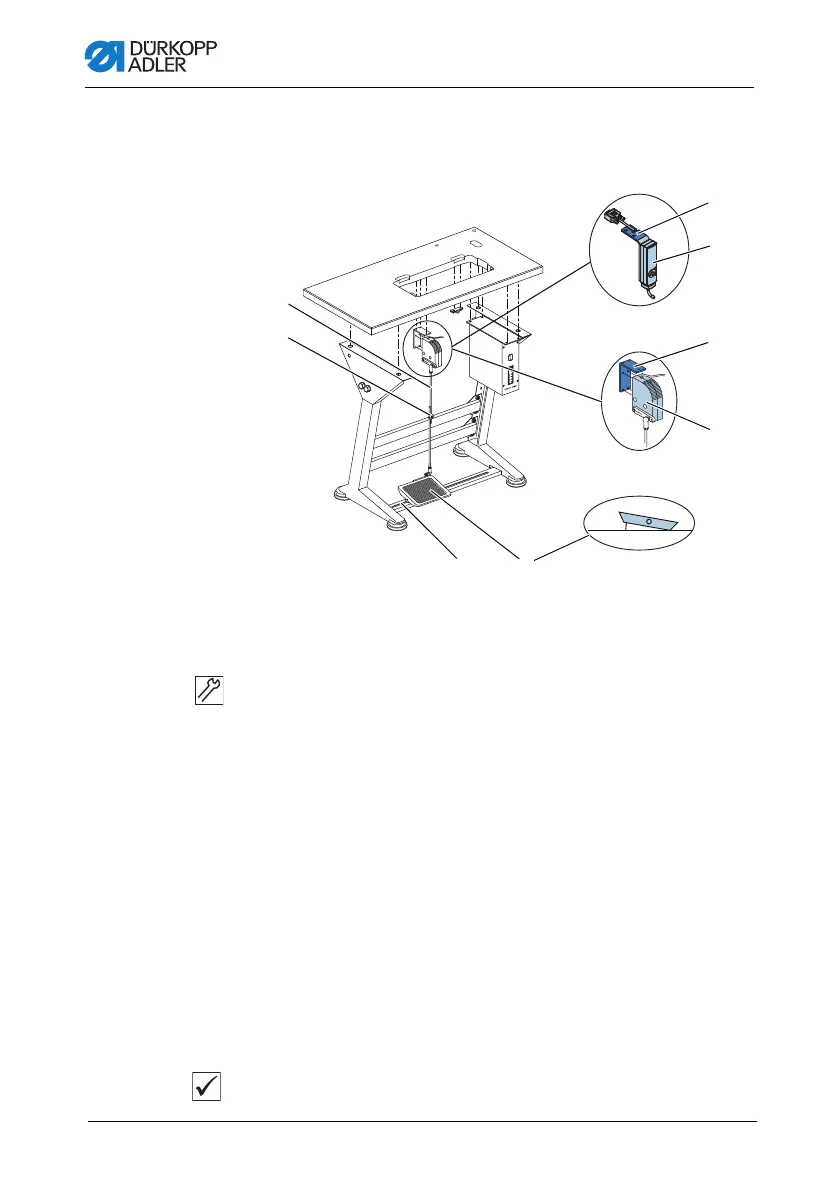

Fig. 58: Assembling the pedal and setpoint device
To assemble pedal and setpoint device:
1. Fit the pedal (4) on the cross strut (3) and align it in such a way
that the middle of the pedal is under the needle. The cross
strut has elongated holes to allow for the alignment of the
pedal.
2. Tighten the pedal (4) on the cross strut (3).
3. Screw the bracket (6) under the tabletop so that the pedal
rod (1) runs to the pedal (4) at right-angles to the setpoint
device (5).
4. Screw the setpoint device (5) onto the bracket (6).
5. Attach the pedal rod (1) with the ball sockets to the setpoint
device (5) and to the pedal (4).
6. Slightly loosen the screw (2).
7. Pull the pedal rod (1) to the correct length:
Proper setting: 10° inclination with pedal (4) released
(1) - Pedal rod
(2) - Screw
(3) - Cross strut
(4) - Pedal
(5) - Setpoint device
(6) - Bracket
