Maintenance
90 Operating Instructions 867 - 04.0 - 03/2018
For topping off the oil reservoir, use only lubricating oil DA 10 or
oil of equivalent quality with the following specifications:
• Viscosity at 40 °C:10 mm
2
/s
• Flash point: 150 °C
You can order the lubricating oil from our sales offices using the
following part numbers.
6.3.1 Lubricating the machine head
Proper setting
The oil level must be above the minimum level marking (2) and
just below the maximum level marking (3).

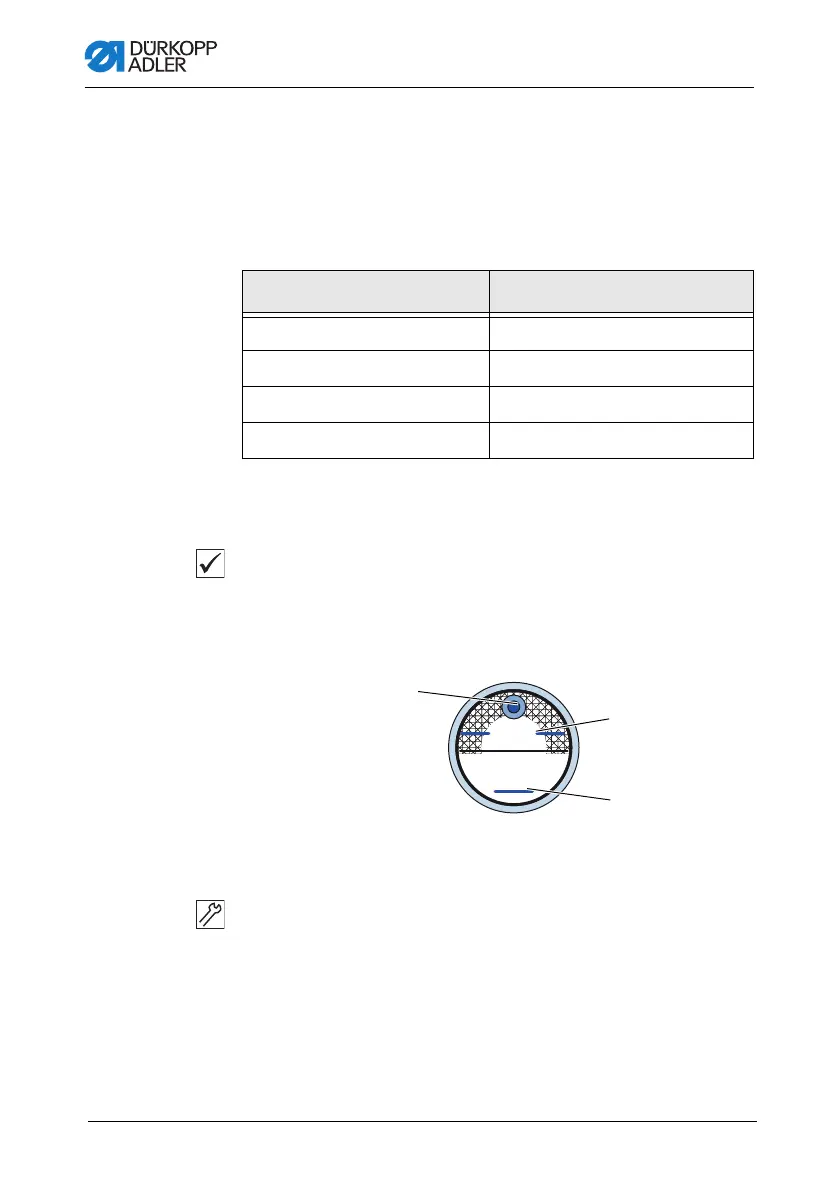

Fig. 48: Lubricating the machine head
To lubricate the machine head:
1. Check the oil level indicator at the inspection glass every day.
If the inspection glass lights up red, the machine is not suffi-
ciently supplied with oil.
Container Part no.
250 ml 9047 000011
1 l 9047 000012
2 l 9047 000013
5 l 9047 000014
(1) - Refill opening
(2) - Minimum level marking
(3) - Maximum level marking
MAX
MIN
