Setup
Operating Instructions 867 - 04.0 - 03/2018 111
To assemble the mechanical knee lever:
1. Tilt the machine head.
2. Guide the transmission rod (5) through the oil pan (1).
3. Assemble the transmission rod (5) on the machine head using
the screw (6).
4. Screw the rod (2) and the knee lever (3) together.
5. Assemble the rod (2) to the transmission rod (5) using the
connecting piece (4).
6. Erect the machine head.
The knee lever (3) automatically moves to its initial position
and is ready for operation.
7.10.2 Assembling the electric knee button

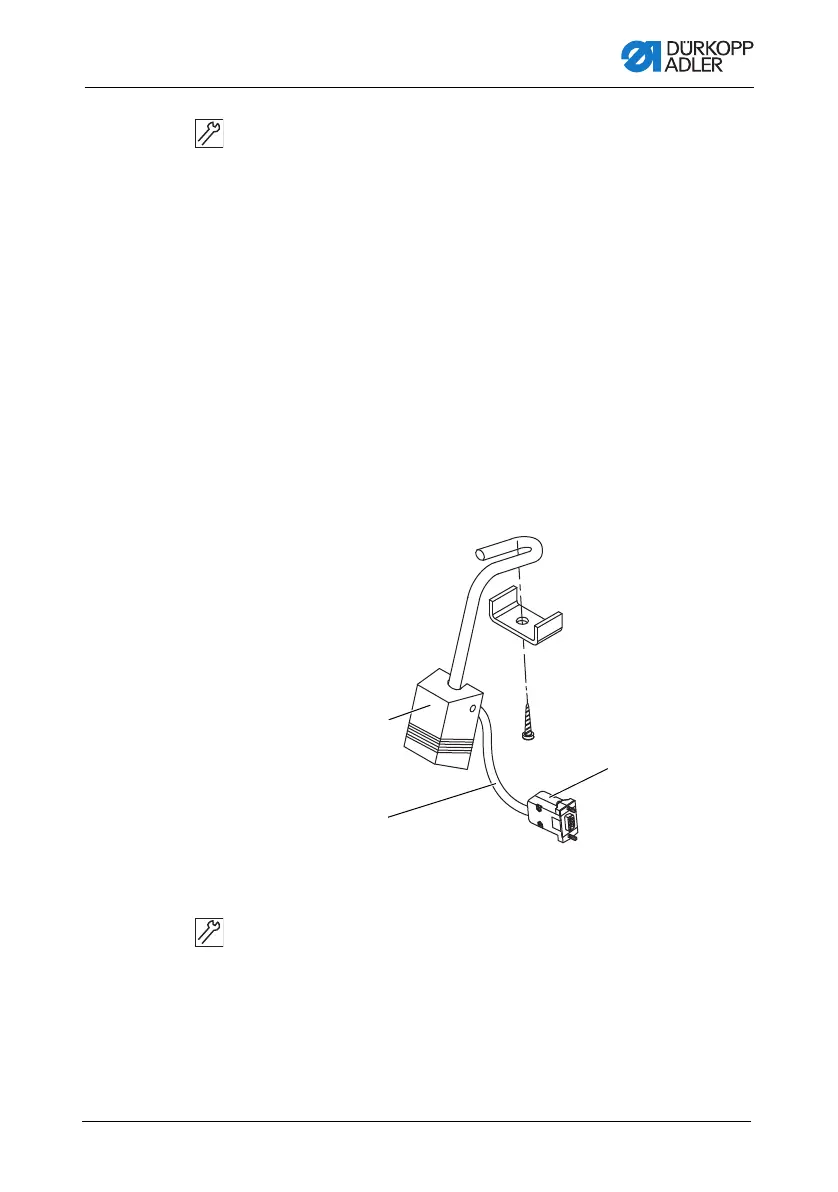

Fig. 64: Assembling the electric knee button
To assemble the electric knee button:
1. Screw the knee button (1) in front of the oil pan firmly in place
under the tabletop.
2. Guide the connecting cable (2) to the back between the oil
pan and the control.
3. Insert the plug (3) of the connecting cable (2) into the socket
of the control ( p. 122).
(1) - Knee button
(2) - Connecting cable
(3) - Plug
