7.14 Lubricating
All wicks and felt bits of the machine head are soaked in oil at the
factory. This oil is conveyed to the reservoir during use. This is
why you should avoid filling too much oil during initial filling.

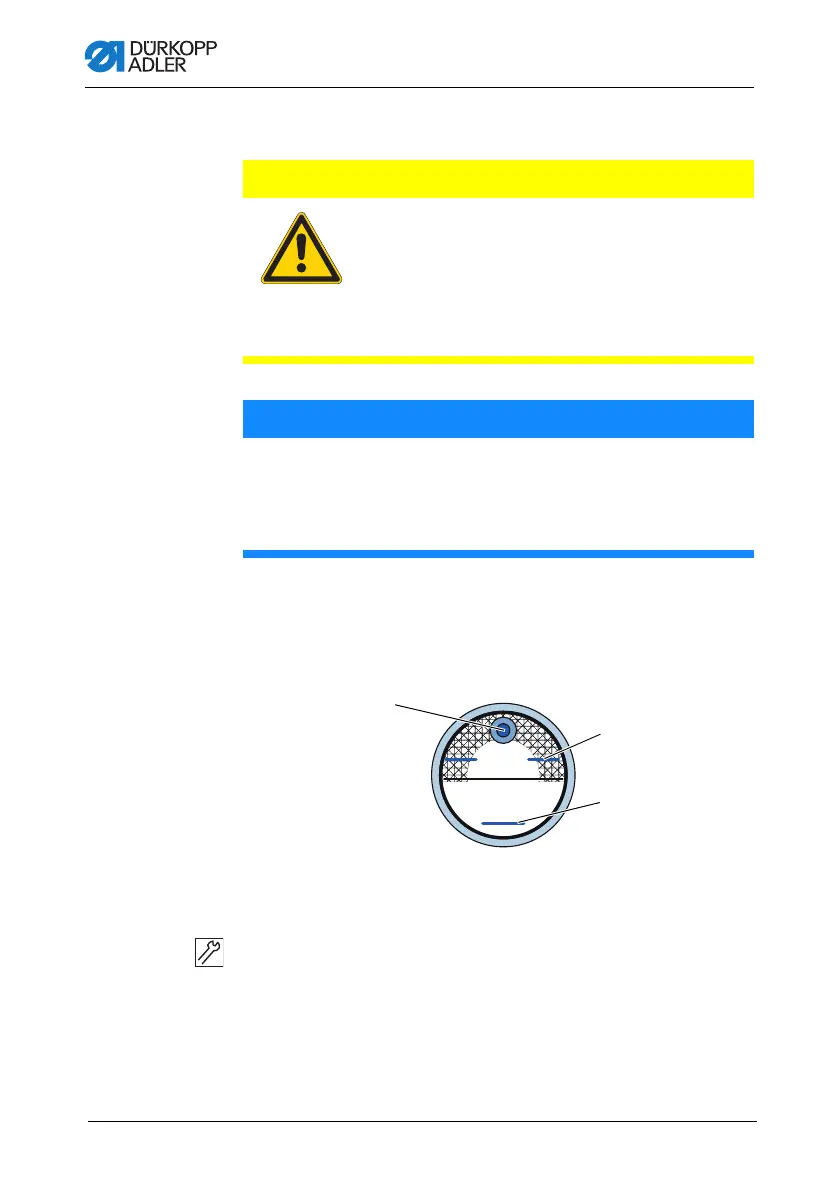

Fig. 79: Checking the lubrication
To top off the oil reservoir:
1. Pour oil through the refill opening (1) up to no more than 2 mm
below the maximum level marking (3).
The oil level must be above the minimum level marking (2)
and just below the maximum level marking (3).
CAUTION
Skin damage from contact with oil!
Oil can cause a rash if it comes into contact with
skin.
Avoid any skin contact with the oil.
If oil has come into contact with your skin, wash
the affected areas thoroughly.
NOTICE
Machine damage possible from incorrect oil level!
Too little or too much oil can cause damage the machine.
During the 1
st
filling only pour in oil up to 2 mm below the
maximum level marking.
(1) - Refill opening
(2) - Minimum level marking
(3) - Maximum level marking
MAX
MIN
