Operation
Operating Instructions 867 - 04.0 - 03/2018 33
5. Guide the left needle thread counterclockwise around the
additional tensioner (2).
6. Guide the left needle thread clockwise around the main
tensioner (3).

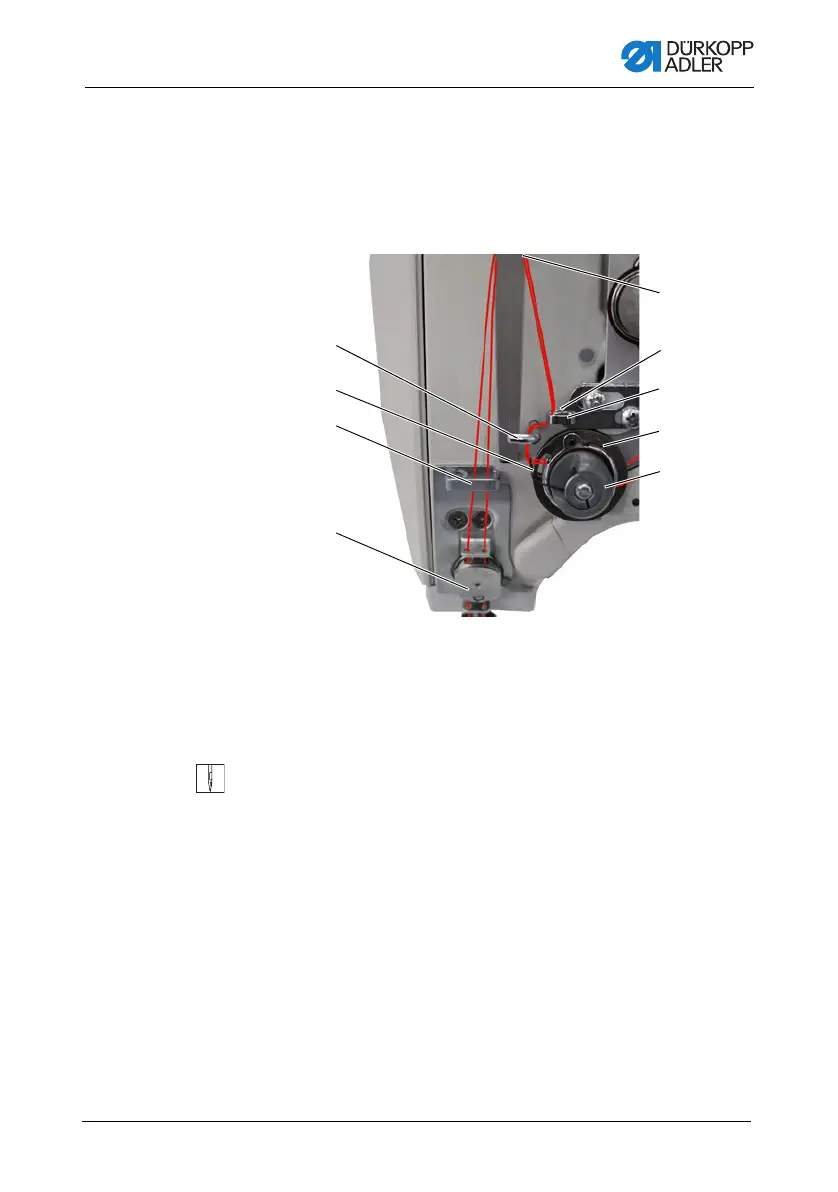

Fig. 11: In 2-needle machines (2)
7. Guide the right needle thread to the front thread tension
spring (11).
8. Lift the front tightening lever (12) with the right needle thread.
9. Pull the right needle thread under the front spring tip (8).
10. Guide the right needle thread under the hook (7).
11. Thread the right needle thread from the bottom through the
needle thread regulator (13).
12. Thread the right needle thread from the right through the lower
hole on the thread lever (15).
13. Guide the left needle thread to the rear thread tension spring (11).
(7) - Hook
(8) - Spring tip
(9) - Upper thread guide
(10)- Thread clamp
(11)- Thread tension spring
(12)- Tightening lever
(13)- Needle thread regulator
(right thread)
(14)- Needle thread regulator
(left thread Page 30)
(15)- Thread lever (not visible)
