DURKOPP ADLER 867 Durkopp Adler

Operation
30 Operating Instructions 867 - 04.0 - 03/2018
For machines with thread clamp
13. Insert the needle thread through the right hole of the guide
above the thread clamp (16).
14. Insert the needle thread through the right hole of the guide
below the thread clamp (16).

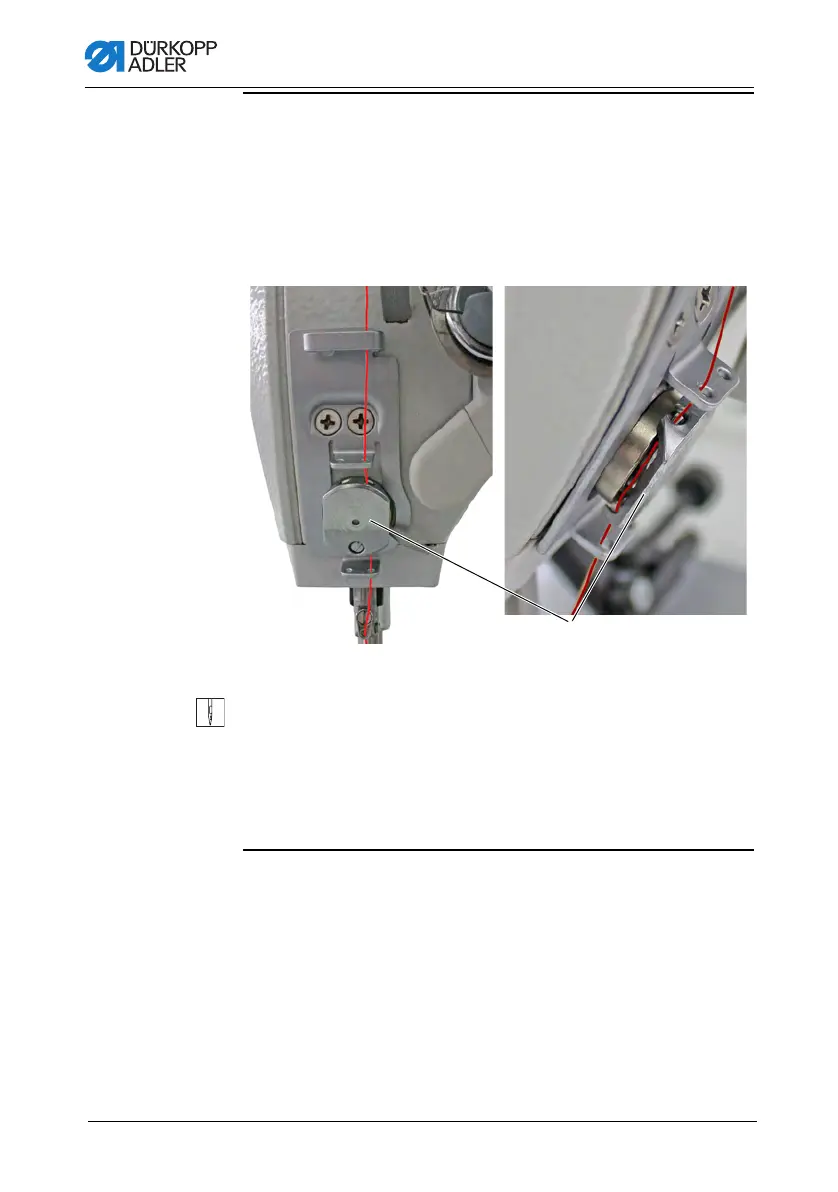

Fig. 9: In 1-needle machines (3)
15. Insert the needle thread into the thread clamp (16) from the
left so that the needle thread is held in place inside the hook
of the clamp.
The needle thread is supposed to run through the clamp almost
without touching it and in such a way that it only makes contact
with the guides above and below the thread clamp (16).
16. Insert the needle thread through the thread guide on the nee-
dle bar (13).
(16)- Thread clamp
⑯

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
