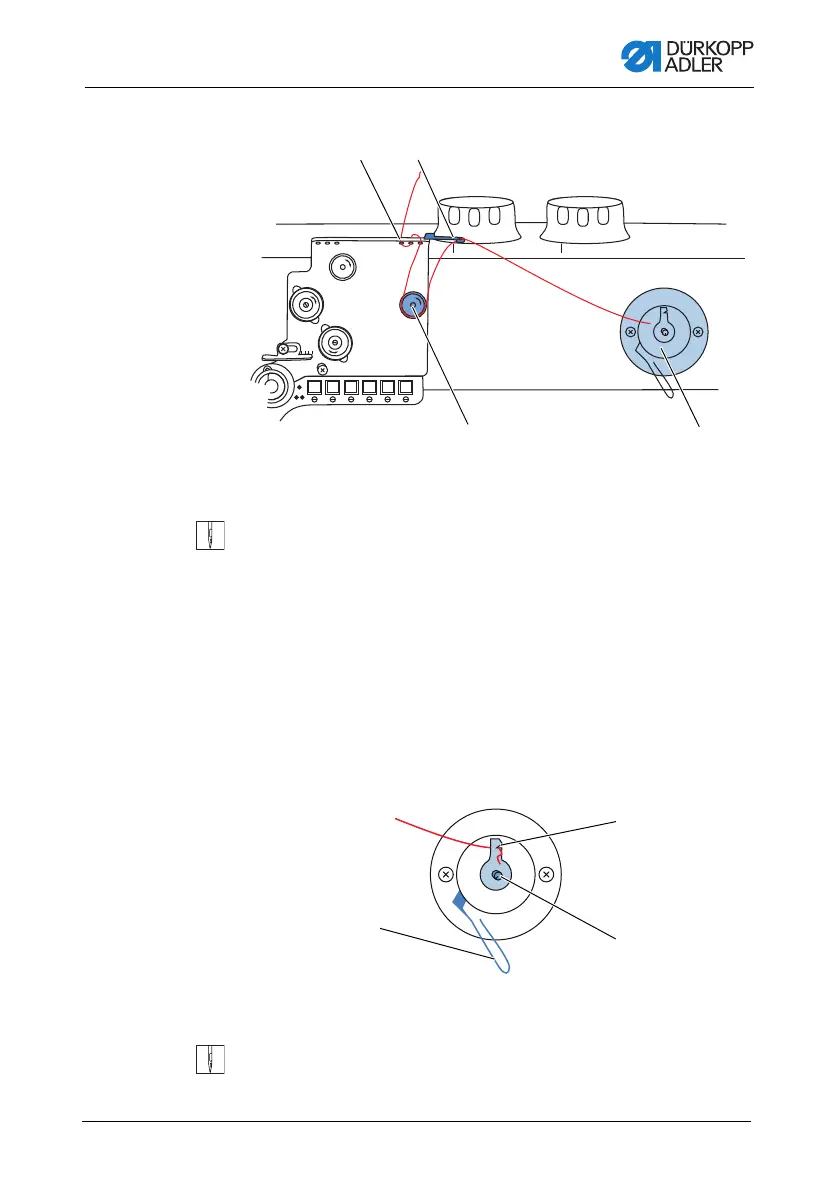

Fig. 13: Winding the hook thread (2)
2. Insert the hook thread in a wavelike manner through the 3 right
holes of the thread guide (2): from top to bottom through the
left hole, from bottom to top through the hole in the middle and,
finally, from top to bottom through the right hole.
3. Guide the hook thread counterclockwise around the
pre-tensioner (3).
4. Insert the hook thread in a wavelike manner through the
2 holes of the thread guide (1): from bottom to top through the
left hole and from top to bottom through the right hole.
5. Guide the hook thread to the winder (4).
Fig. 14: Winding the hook thread (3)
6. Clamp the hook thread behind the cutter (7) and tear off the
loose end behind it.
(1) - Thread guide
(2) - Thread guide
(3) - Pre-tensioner
(4) - Winder
1234
5
6
4
1
2
9
(5) - Winder lever
(6) - Bobbin shaft
(7) - Cutter
