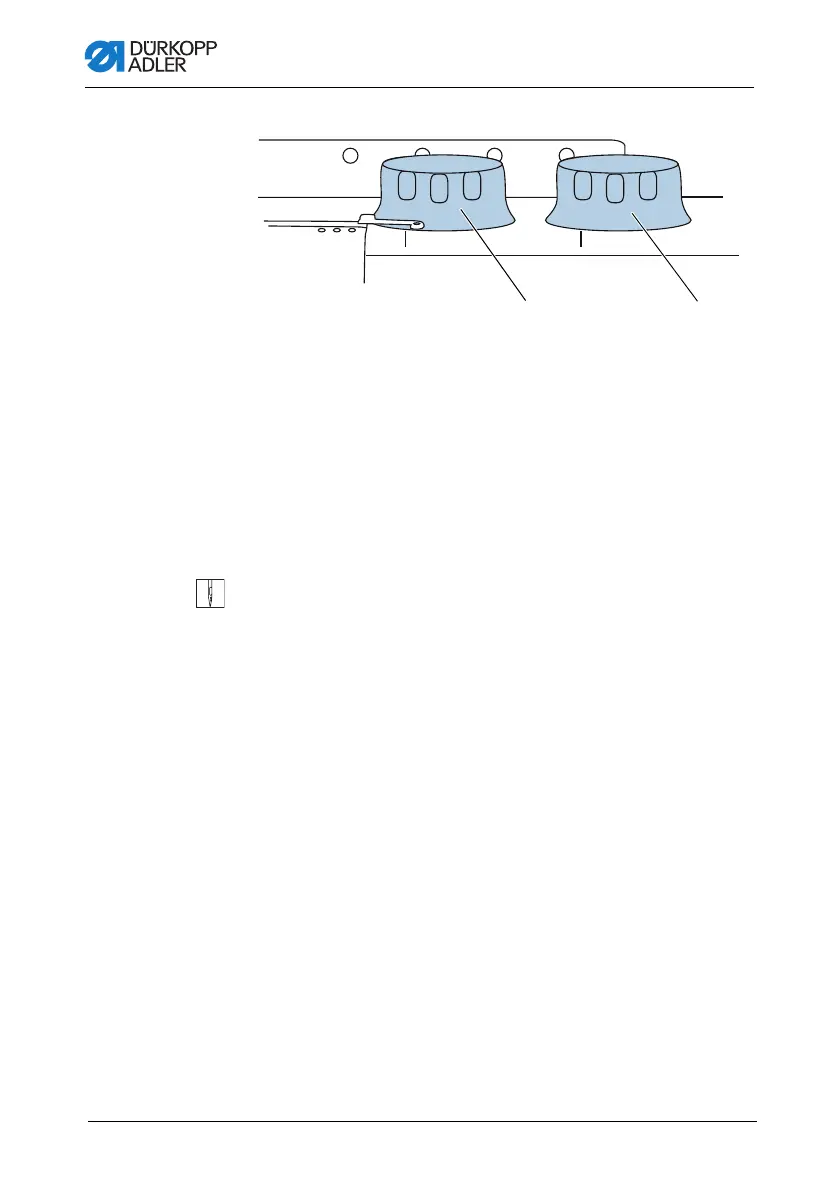

Fig. 29: Setting the stroke height
The adjusting wheels serve the following functions:
• Adjusting wheel (1): normal sewing foot stroke (stroke during
sewing)
• Adjusting wheel (2): increased sewing foot stroke (switchable
stroke)
To set the sewing foot stroke:
Increasing the sewing foot stroke
1. Turn the adjusting wheel clockwise.
Reducing the sewing foot stroke
1. Turn the adjusting wheel counterclockwise.
(1) - Adjusting wheel
(normal sewing foot stroke)
(2) - Adjusting wheel
(increased sewing foot stroke;
CLASSIC machines only)
