and then freeze it.
4. Measure the length of the third axis in the vertical section image with
the distance measurement method. The outcome will be displayed in
the measurement result window.
In the 2B mode or 4B mode
To measure volume:
1. Obtain the cross-section image and the vertical-section image.
2. Measure the length of the major axis and the minor axis of the cross
section with the ellipse method.
3. Roll the trackball to the next image, vertical section image, measure
the length of the third axis with the distance measurement method.
The outcome will be displayed in the measurement result window, as
shown below.
4. Press Caliper to finish and exit.

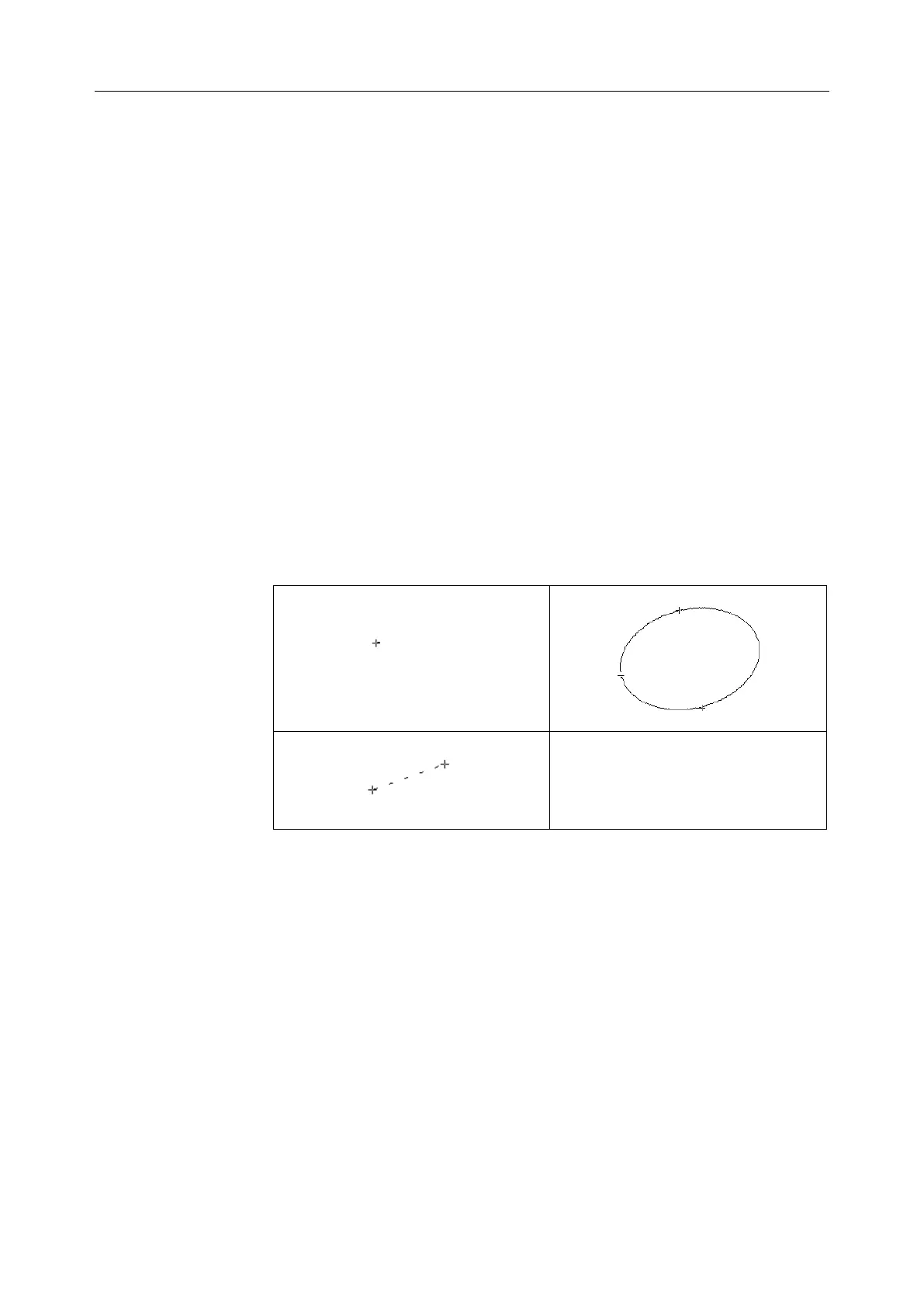

Figure 6-7 3-Axis Volume Method and the Results
3-Axis (LWH) method
V= (π/6) × L × W × H,
(L: the length. W: the width. H: the height.)
Three-axis (LWH) method can be used to perform volume measurement
by calculating 3 sets of distance data, L, W, and H. Measure the three
pieces of data by the method of B mode generic distance measurement,
and then the value of volume will be displayed automatically.
To measure volume:
In the B mode
1. Obtain a cross-section image and freeze the system.
