10.0 OPTIONS ON EN1000/EN1001 SERIES CONTROLS (cont.)

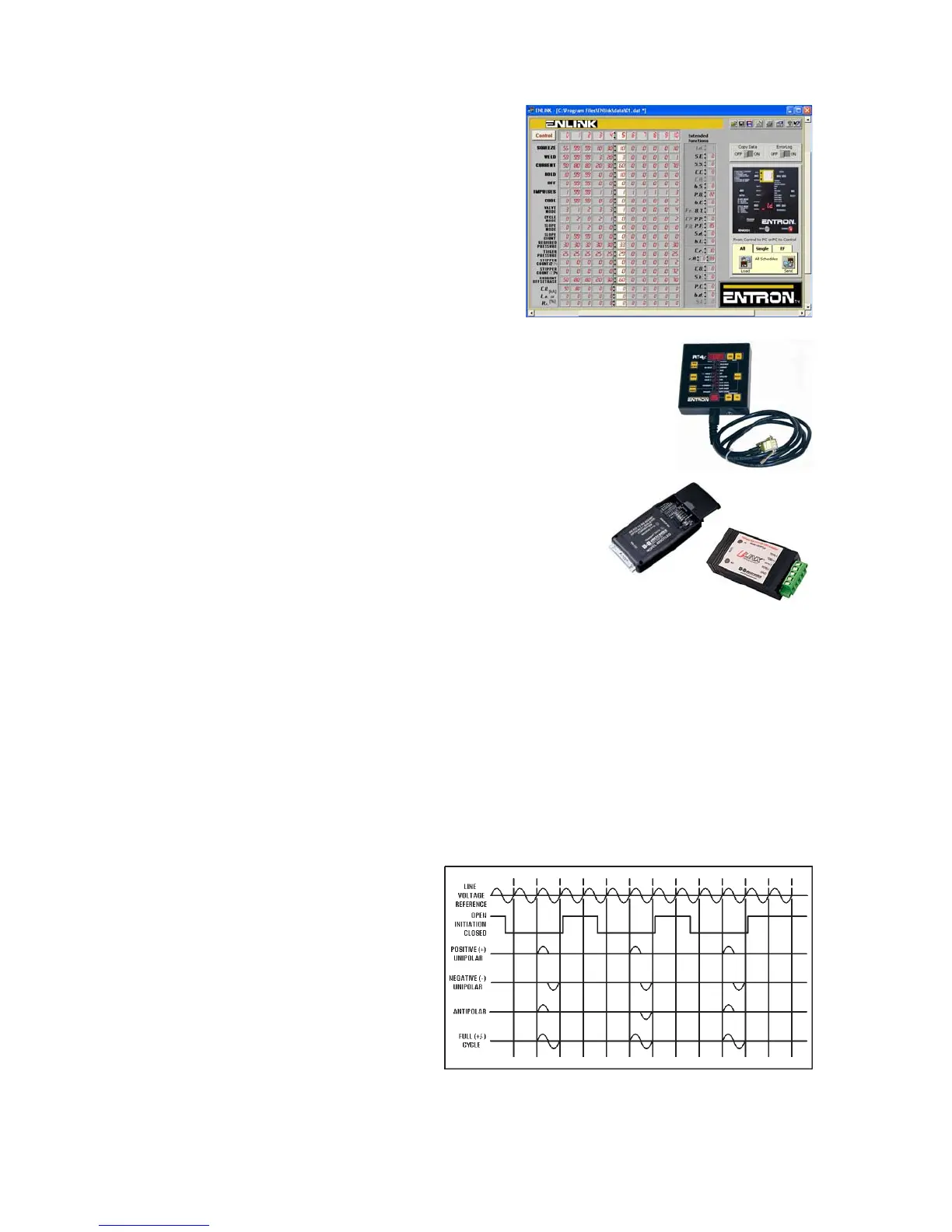

10.9 ENLINK 1000/1001 SOFTWARE
ENLINK 1000/1001 software is available for use with
any EN1000 or EN1001 Control. It offers the ability
to upload, download, store, retrieve, monitor and
backup weld schedules to and/or from control using
PC connected via RS232 or RS485 converters.
Software is available on CDROM and works with
Microsoft WindowsJ.
10.10 REMOTE TERMINAL RT4jr.
The Remote Terminal RT4jr. is designed as master device for
communication with EN1000 or EN1001 Controls through RS485 two-
wire network, allowing access to multiple controls. RT4jr. Control Panel
provides programming and monitoring capabilities.
10.11 ISOLATED ADAPTERS – S485 AND U485
ENTRON offers two isolated adapters which can be used on PC
to communicate with EN1000 and EN1001 Controls. S485 Serial
Adapter with power supply is RS232 to RS485 converter. U485
USB Adapter is USB to RS485 converter.
10.12 RS232 OPTIONS
ENTRON RS232 interface is full duplex and operates in ASCII mode with specified RS232
Command/Response protocol. Using ASCII (American Standard Code for Information
Interchange) mode, each eight-bit byte in a message is sent as two ASCII characters. The main
advantage of this mode is that it allows time intervals to occur between characters without
causing an error. In addition, the protocol uses short ASCII commands and an interactive mode.
Can be used with ENLINK 1000/1001 Software. See Instruction Manual 700140 for more
details.
10.13 HALF-CYCLE OPTION
The Half-Cycle option allows for
programming of either unipolar or
antipolar operation and polarity of half-
cycle in unipolar mode. See Application
Note 700114 for information about this
option.This option is not available for
EN1000/EN1001 Bench Controls.
