Entron EN1000 series User Manual

Page 154 • 700120S • ENTRON Controls, LLC.
APPENDIX E EN1000/EN1001 BENCH CONTROLS
Wiring Diagrams
EN1000-B Controls – 421262 Series
EN1001-B Controls – 421447 Series
E-1.0 GENERAL DESCRIPTION
The EN1000 and EN1001 Bench Controls use a smaller “B” style cabinet. This Bench Control
has many of the same functions as standard EN1000/EN1001 Controls. It uses a different
Terminal/Firing Board and includes a Polarity Reverse switch.
The information presented in this Appendix highlights those functions unique to the EN1000-B
and EN1001-B Controls. All other functions and details have been covered previously in this
manual.
E-2.0 CONTROL PANEL LAYOUT
Additions to Control Panel of EN1000-B and EN1001-B Controls include Polarity Reverse
switch (Item 32) and programming information for HALF CYCLE operation.

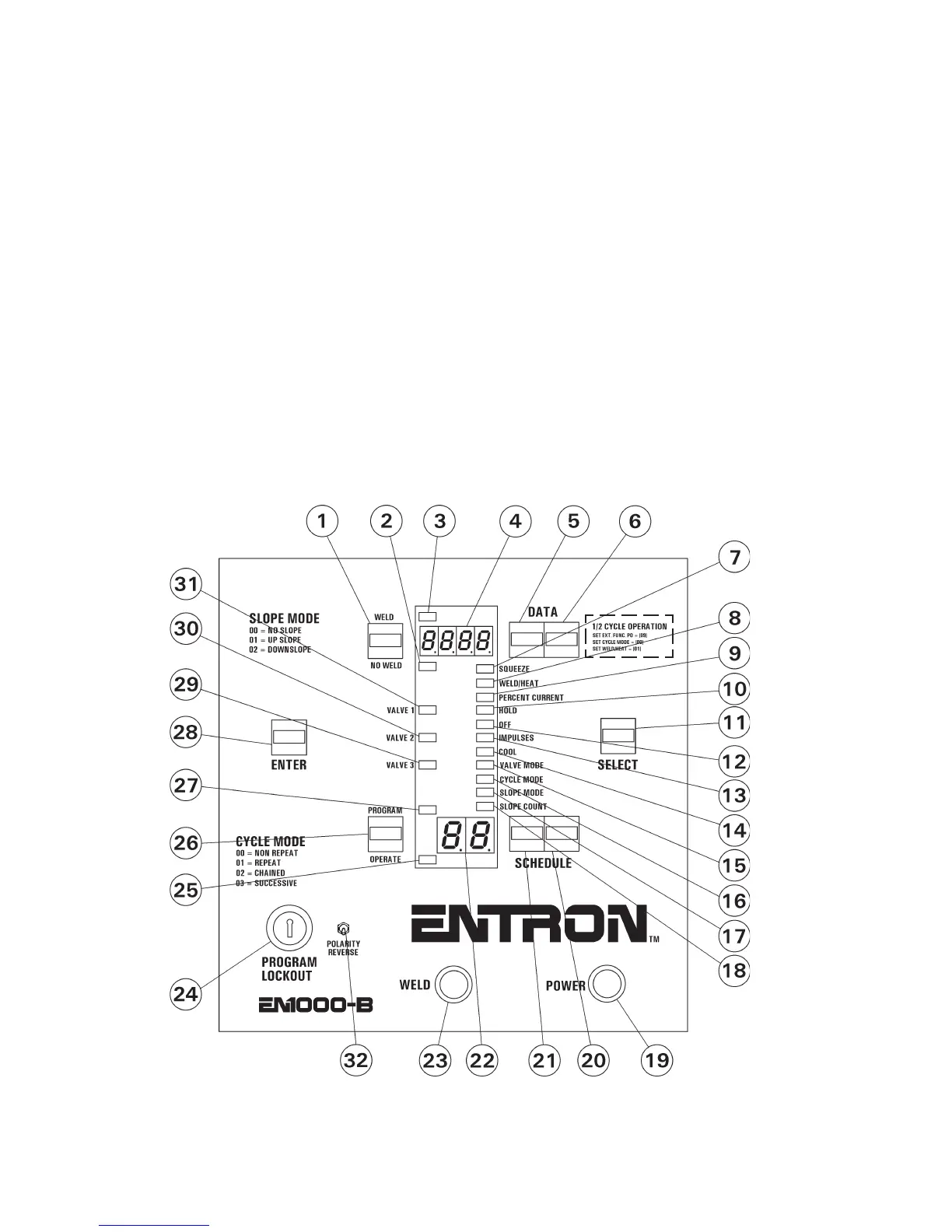

Figure E-1. Control Panel layout
