ENTRON Controls, LLC. • 700120S • Page 35
TS1 Terminal Strip Connections Description (cont.)
TS1-VL1 Used to connect one side of internal or external Valve Power (115 VAC internal
or 24-240 VAC external*).
TS1-SV2/SV4/VL2
Used to connect other side of Valve Power* and other side of Solenoid Valve
1 and 2 coil(s).
TS1-SV1 Used to connect one side of Solenoid Valve #1 coil.
TS1-SV3 Used to connect one side of Solenoid Valve #2 coil.
TS1-SV5 Used to connect one side of Solenoid Valve #3 coil.
TS1-SV6/VL2
Used to connect other side of Solenoid Valve #3 coil.
* When external valve power is used (24-240 VAC), internal Valve Transformer
must be disconnected at TS1-VL1 and TS1-SV2/SV4/VL2.
Properly insulate the wires from X1 and X2 of the Valve Transformer.
TS3 Terminal Strip Connections Description
TS3-1 Used as other point for Jumper JA.
TS3-2 Used as common point for Jumper JA or JB.
TS3-VL1 Used as Valve Power Supply Input and other side of Jumper JB.
TS3-VL2 Used as Valve Power Supply Input.
4.3.3 TERMINAL STRIP TS1 INSIDE THE CABINET
See front page for appropriate Wiring Diagram.

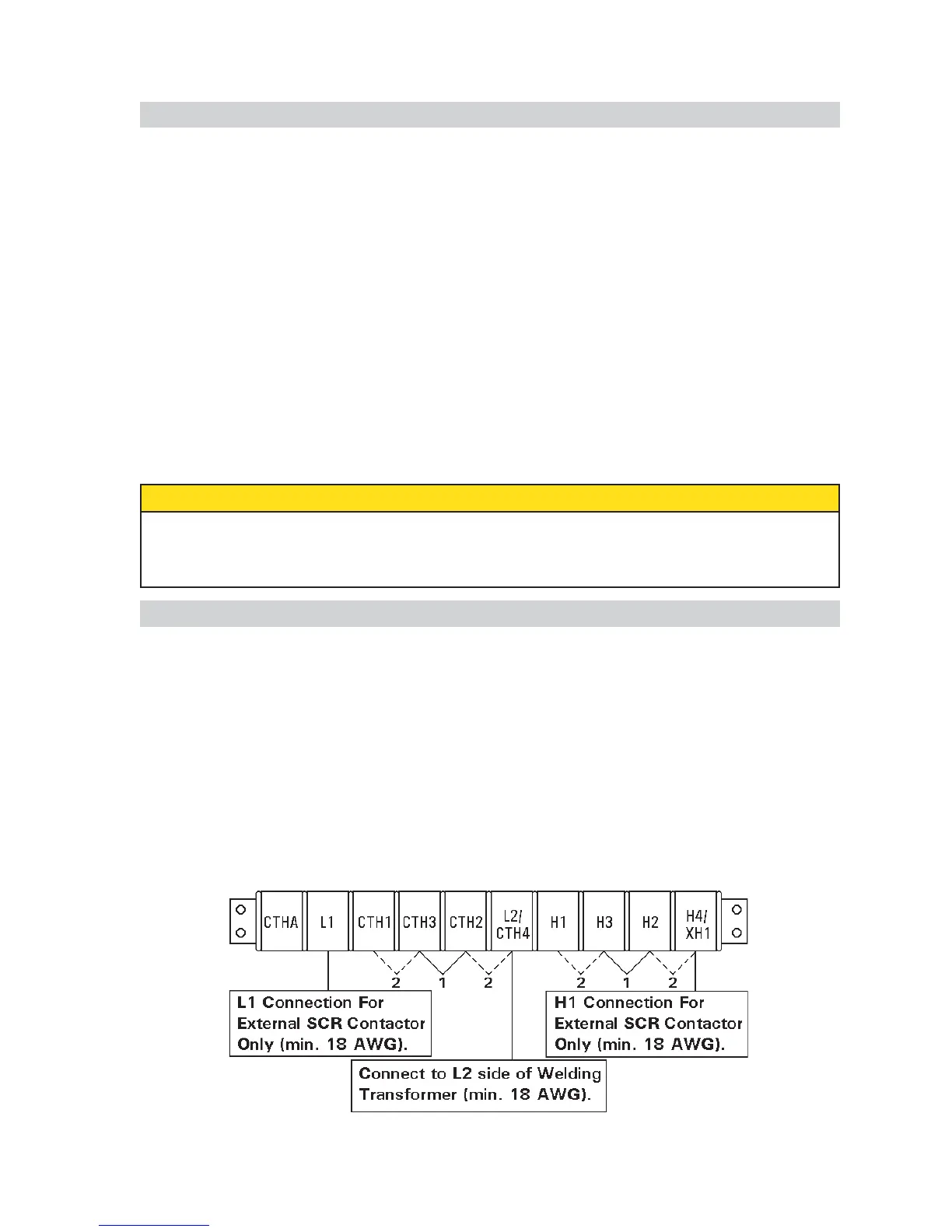

Figure 4-6. Terminal Strip for “T/D” Cabinet
4.3.2 TERMINAL STRIP CONNECTIONS (cont.) – See Figure 4-4 and Figure 4-5
CAUTION
