5.4.5 CLEAR ALL FUNCTIONS –
C.A.C.A.
C.A.C.A.
C.A.
It is sometimes desirable to CLEAR ALL previous SCHEDULES and EXTENDED
FUNCTIONS from the memory and return the programmed parameters to factory defaults.
To use the CLEAR ALL feature:
1. Put the control in PROGRAM mode.
2. Use SELECT to find
EFEF
EFEF
EF.
3. Use the SCHEDULE push buttons to find
C.A.C.A.
C.A.C.A.
C.A.
4. Enter a value for
C.A.C.A.
C.A.C.A.
C.A. of
0101
0101
01.
5. Press the ENTER push button to clear all SCHEDULE data.
6. Enter a value for
C.A.C.A.
C.A.C.A.
C.A. of
0202
0202
02.
7. Press the ENTER push button to clear EXTENDED FUNCTIONS data.
8. Press PROGRAM/OPERATE push button to return the control to OPERATE mode.
ONCE THE CLEAR ALL FUNCTION IS EXECUTED,
ERASED DATA CANNOT BE RESTORED.
SHORTCUT TO CLEAR DATA FOR DISPLAYED SCHEDULE
1. Put the control in PROGRAM mode.
2. Press and hold ENTER.
3. Click the PROGRAM/OPERATE button.
All SCHEDULE data for the displayed schedule
will be erased.
SHORTCUT TO CLEAR ALL EXTENDED FUNCTIONS FROM CONTROL
1. Remove all power to the control.
2. Press and hold the PROGRAM/OPERATE push button.
3. Reapply power to the control.
All EXTENDED FUNCTIONS parameters in the control have been erased.
After firmware updates in the field, a one-time CLEAR ALL is required when upgrading to a
new version of firmware on ALL older Control Boards.

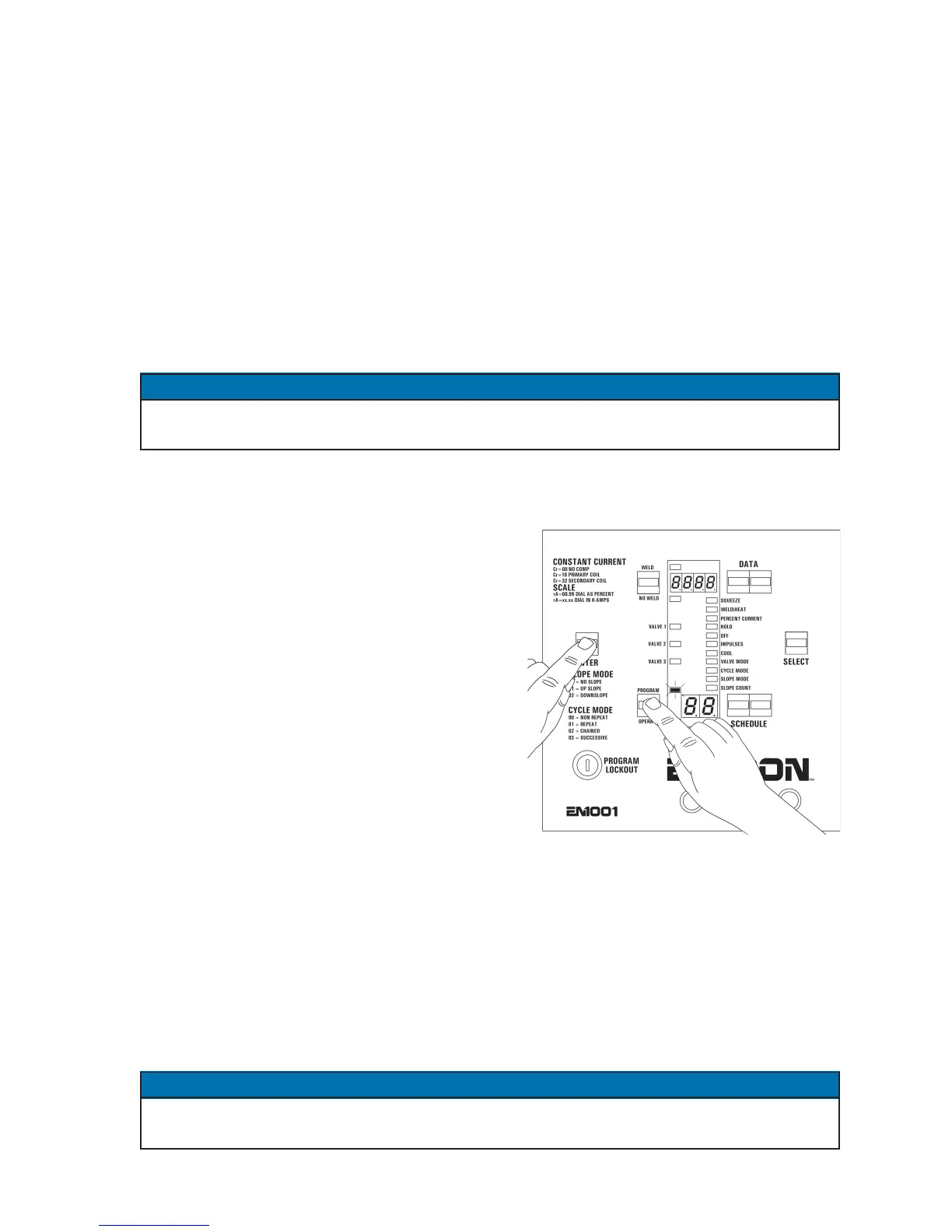

Figure 5-14. Clear SCHEDULE data
