Page 52 • 700120S • ENTRON Controls, LLC.
Dual Two-stage Foot Switches with EXTERNAL SCHEDULE SELECT
The Dual Schedule and EXTERNAL
SCHEDULE SELECT functions can be
combined to allow initiations by means of 2 two-
stage foot switches.
Use schedule 00 for the foot switch #1 sequence
and schedule 10 for the foot switch #2 sequence.
The foot switches and additional diode assembly
(A/N 600573) are connected to TS1 Terminal
Strip (see Figure 5-8). The diode assembly may
be substituted with most any silicon diode rated
1 A at 100 V.
Multiple Two-stage Foot Switches with
EXTERNAL SCHEDULE SELECT
The Dual Schedule and EXTERNAL SCHEDULE
SELECT functions can also be combined to allow
initiations by means of multiple two-stage foot
switches.
Use schedule 00 for foot switch #1 sequence, schedule
10 for foot switch #2 sequence, schedule 20 for foot
switch #3 and schedule 30 for foot switch #4.*
The foot switches and additional diodes (P/N 170012)
are connected to TS1 Terminal Strip as shown in
Figure 5-9. The diode assembly may be substituted
with most any silicon diode.
* Similar connections can be used with S49 Option (see
EXTERNAL BINARY SELECT Section).
5.4.3 SCHEDULE SELECT –
S.S.S.S.
S.S.S.S.
S.S. (cont.)

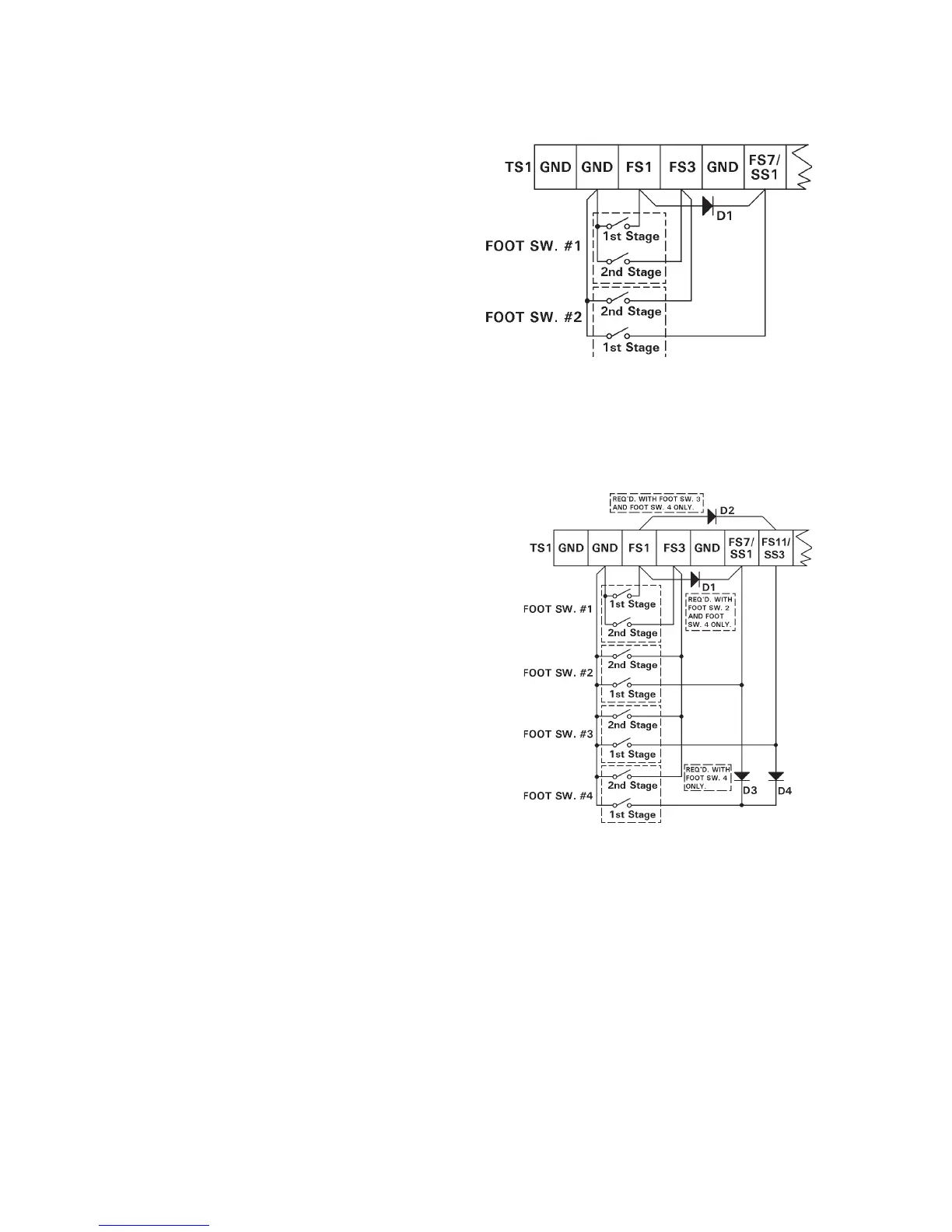

Figure 5-9. Multiple two-stage foot
switch initiation
Figure 5-8. Dual two-stage foot switch
initiation
