Entron EN1000 series

Page 46 • 700120S • ENTRON Controls, LLC.
5.4 EXTENDED FUNCTIONS
The EN1000/EN1001 EXTENDED FUNCTIONS allow the operator to change normal operation
modes and add various operating functions that are useful for special applications of the control.
The EXTENDED FUNCTIONS are used instead of Jumper or Dip-switch settings. They are
accessible from the Front Panel by simply clicking the SELECT push button until FUNCTION
indicator LED reaches SLOPE COUNT, then click once more. At this point, the DATA display
will show
EFEF
EFEF
EF. By clicking the SCHEDULE push buttons, the EXTENDED FUNCTIONS are
visible in the SCHEDULE display. For most features, such as CHAINED schedules or
SUCCESSIVE initiations, it is not necessary to enable
functions. For some others such as STEPPER (
S.t.S.t.
S.t.S.t.
S.t.), it is
necessary to just enable a Front Panel-accessible
EXTENDED FUNCTION. For others, it is necessary to
add optional hardware to the base control, such as the
Integrated Pressure Sense Control System or Constant
Current operation.
To change settings of EXTENDED FUNCTIONS, use
SELECT to step once past SLOPE COUNT.
At this point, all FUNCTION indicator LEDs are off and
the DATA display shows
EFEF
EFEF
EF. This indicates that the control
is in the EXTENDED FUNCTION mode, and these
functions can be altered or viewed.
To view EXTENDED FUNCTIONS, press the
SCHEDULE push buttons and step in either direction
through the available EXTENDED FUNCTIONS. When
a desired parameter is shown by the SCHEDULE display,
the DATA display will show the current value of that
selection.
To exit the EXTENDED FUNCTION mode, press SELECT to advance the FUNCTION indicator
LED one more time.

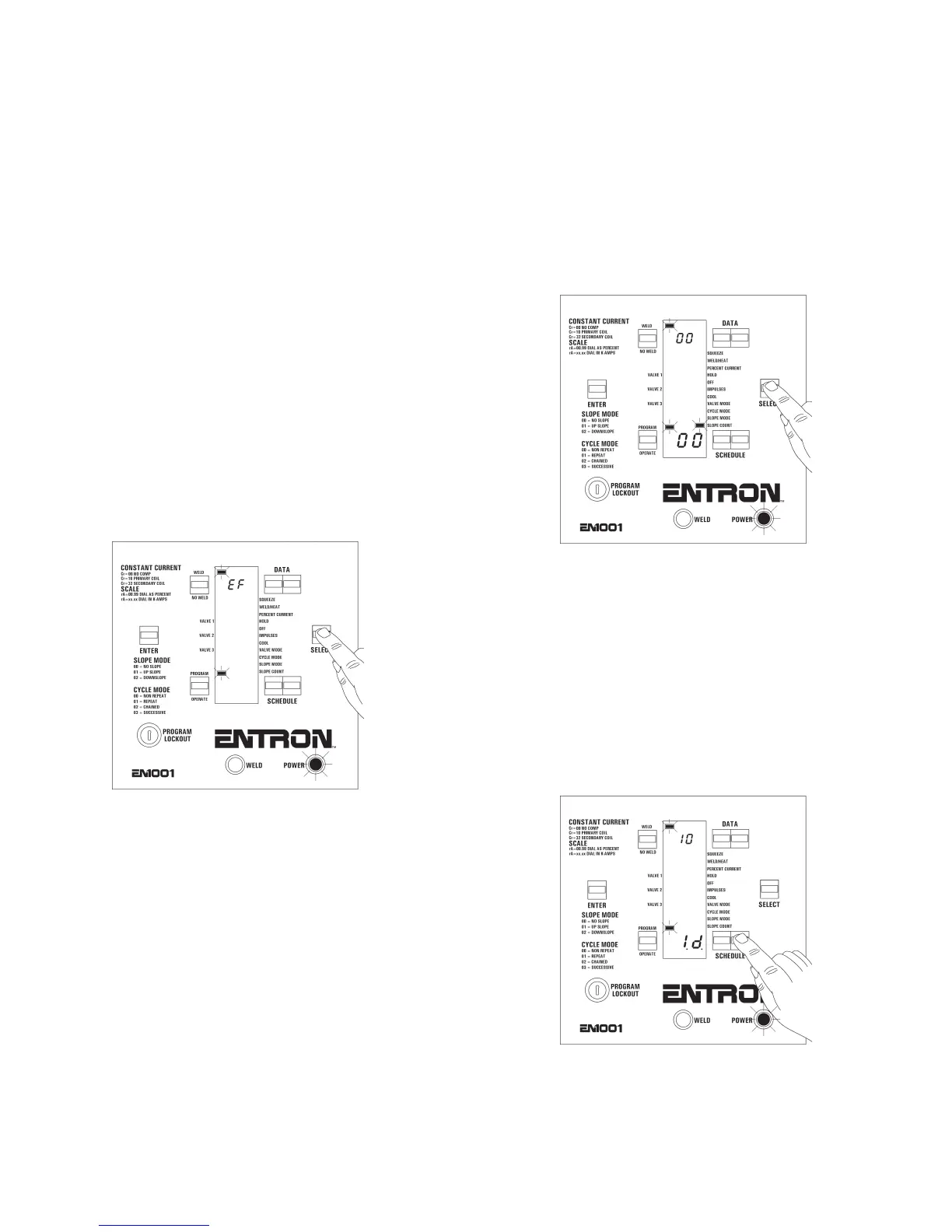

Figure 5-5. Selecting functions
Figure 5-6. EXTENDED
FUNCTIONS mode
Figure 5-7. Viewing
EXTENDED FUNCTIONS
