APPENDIX B PROGRAMMING AND SETUP
B-1.0 INTRODUCTION TO PROGRAMMING EN1000/EN1001
SERIES CONTROLS

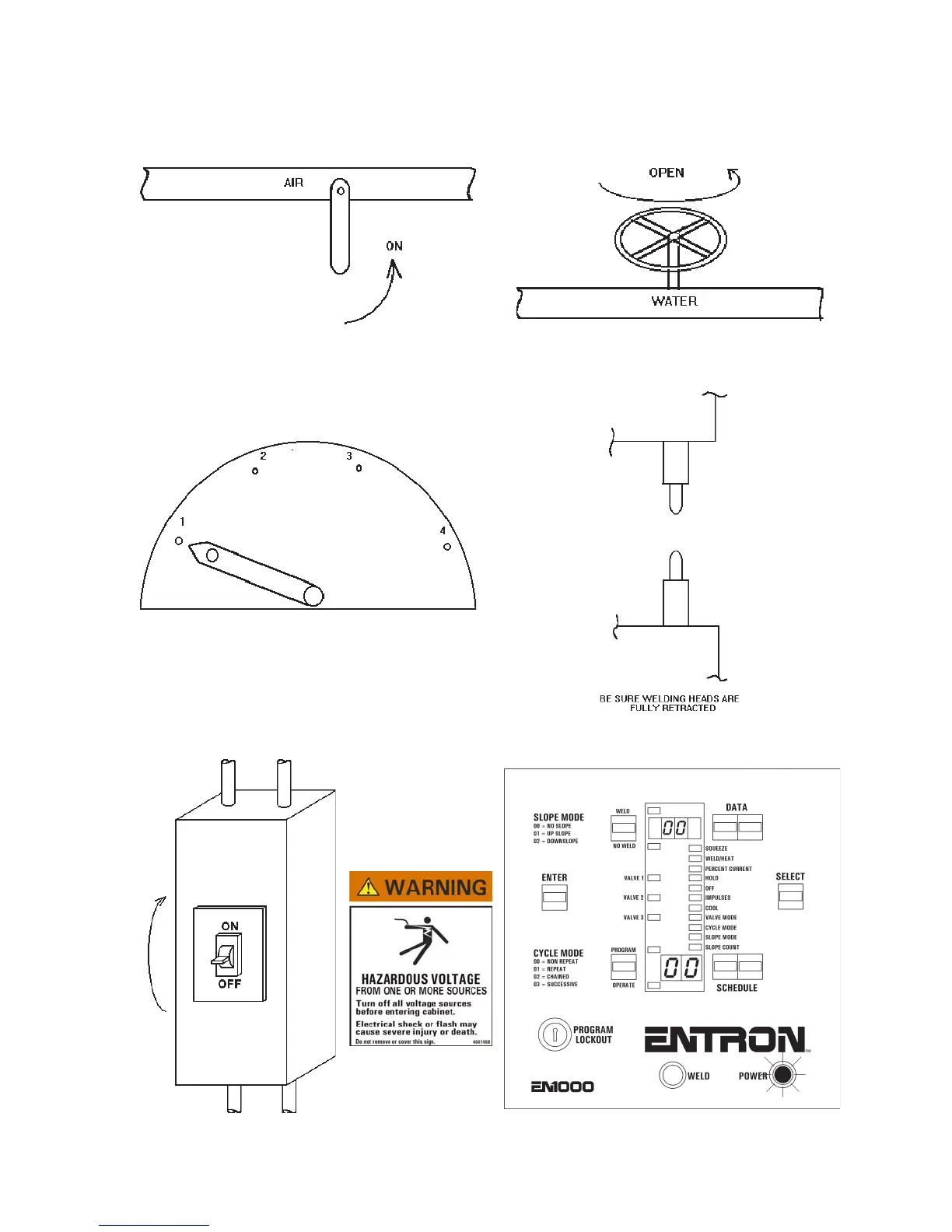

Figure B-2. Turn ON water supply to
machine
Figure B-1. Turn ON air supply to machine
Figure B-3. Set welder switch LOW
Be sure welder head or arms are fully retracted!
Figure B-4. Retracted head or arms
Figure B-5. Turn ON power to control Figure B-6. POWER ON light indicator
To Next Page
