3.2 INSTALLATION AND MOUNTING DIAGRAMS – “E” CABINET
Style “E” Cabinet installation and mounting diagrams are shown in Figures 3-2, 3-3 and 3-4.

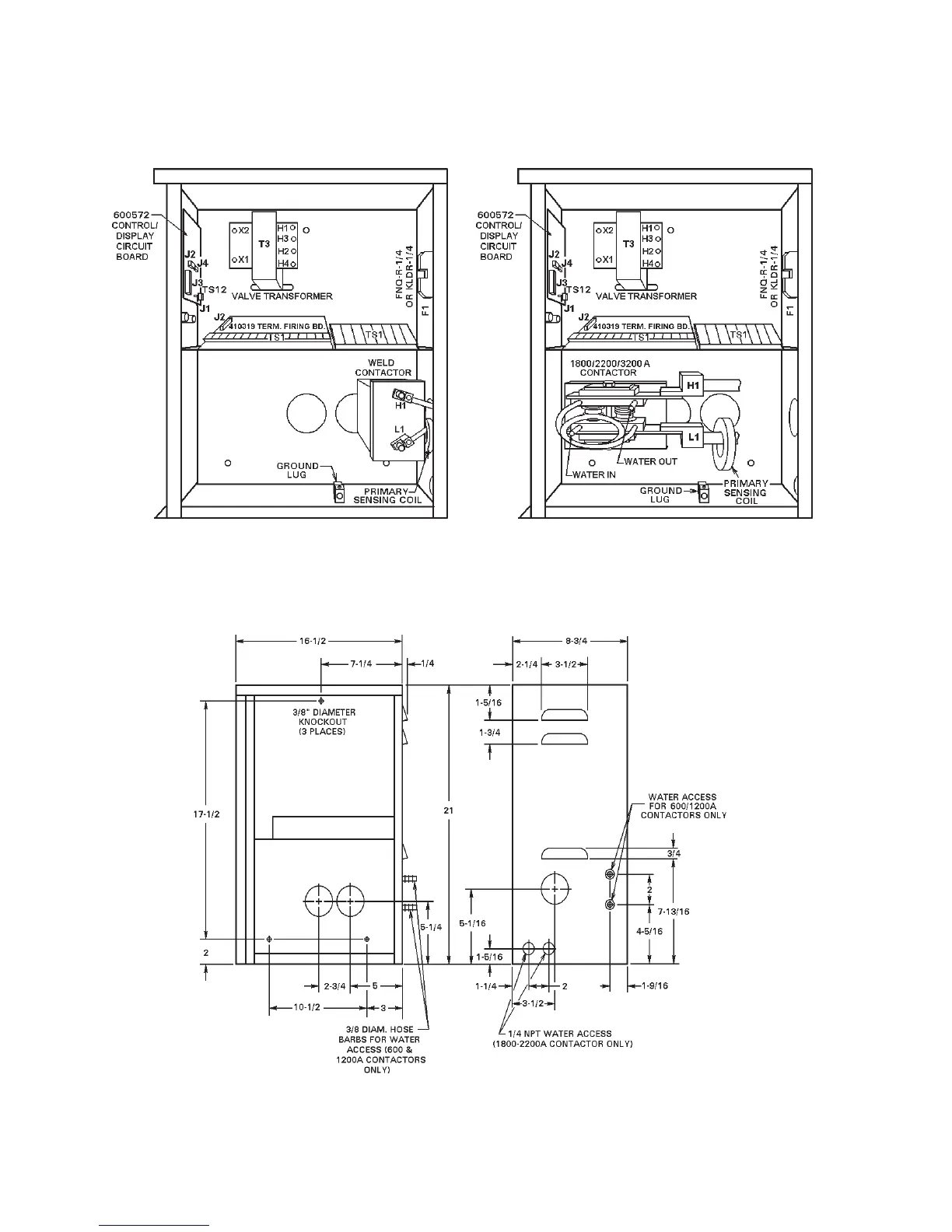

Figure 3-2. Installation of Style “E”
Cabinet – 300A & 1200A Contactor
Figure 3-3. Installation of Style “E”
Cabinet – 1800/2200/3200A Contactor
Figure 3-4. Mechanical mounting diagram for “E” Cabinet
