4.3 TERMINAL STRIP DIAGRAMS AND CONNECTIONS
4.3.1 TERMINAL STRIP TS1/PCB2
See front page for appropriate Wiring Diagram.
For most current revision of the component placement on this board, see Figure 4-5.

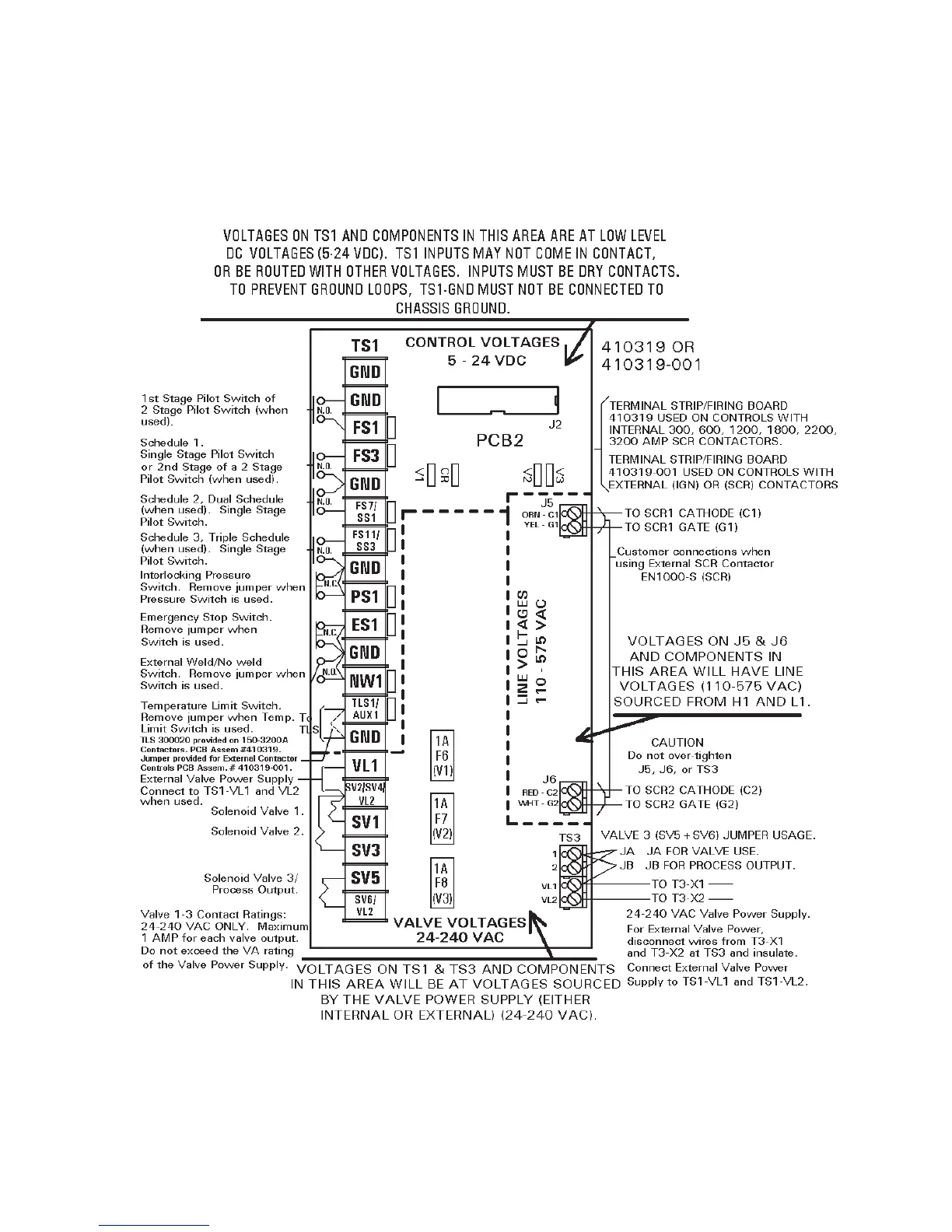

Figure 4-4. Terminal Strip/Firing Board
