ENTRON Controls, LLC. • 700120S • Page 45
5.3.1 USING PROGRAMMING SHORTCUTS
TO QUICK COPY A SCHEDULE UP TO
THE NEXT SCHEDULE
1. Put the control in the PROGRAM mode.
2. Press and hold ENTER.
3. Click the SCHEDULE 1s button.
The displayed schedule is copied to the next higher
schedule. The new schedule is now displayed.
TO QUICK COPY A SCHEDULE UP TEN
SCHEDULES
1.Put the control in the PROGRAM mode.
2.Press and hold ENTER.
3.Click the SCHEDULE 10s button.
The displayed schedule is copied to that schedule
number plus ten. The new schedule is now displayed.
TO CLEAR DATA FOR DISPLAYED
SCHEDULE
1. Put the control in the PROGRAM mode.
2. Press and hold ENTER.
3. Click the PROGRAM/OPERATE button.
All SCHEDULE data for the displayed schedule
has been erased.
TO CLEAR ALL EXTENDED FUNCTIONS
FROM CONTROL
1. Remove all power to the control.
2. Press and hold the PROGRAM/OPERATE push button.
3. Reapply power to the control.
All EXTENDED FUNCTIONS parameters in the control have been erased.

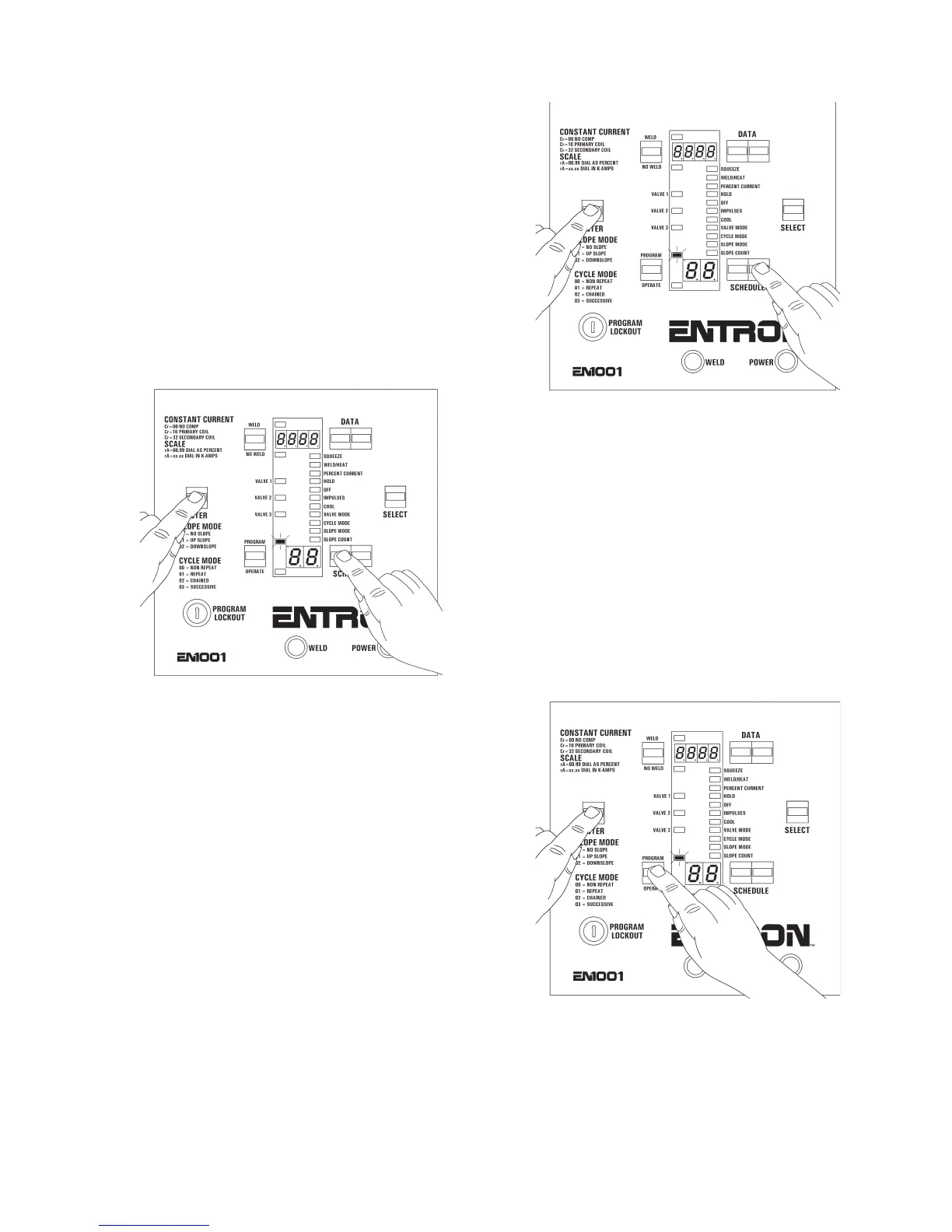

Figure 5-2. Copy schedule up by 1
Figure 5-3. Copy schedule up by 10
Figure 5-4. Clear SCHEDULE data
