Entron EN1000 series

Page 54 • 700120S • ENTRON Controls, LLC.
NOTICE
NOTICE
Table 5-2. S49 EXTERNAL SCHEDULE SELECT
DECIMAL (SCHEDULE) TO BINARY (TS12-SS1 through TS12-SS32)
1 = CLOSED 0 = OPEN
TS12-SS1 through TS12-SS32 require 24 VDC at 50 mA contacts

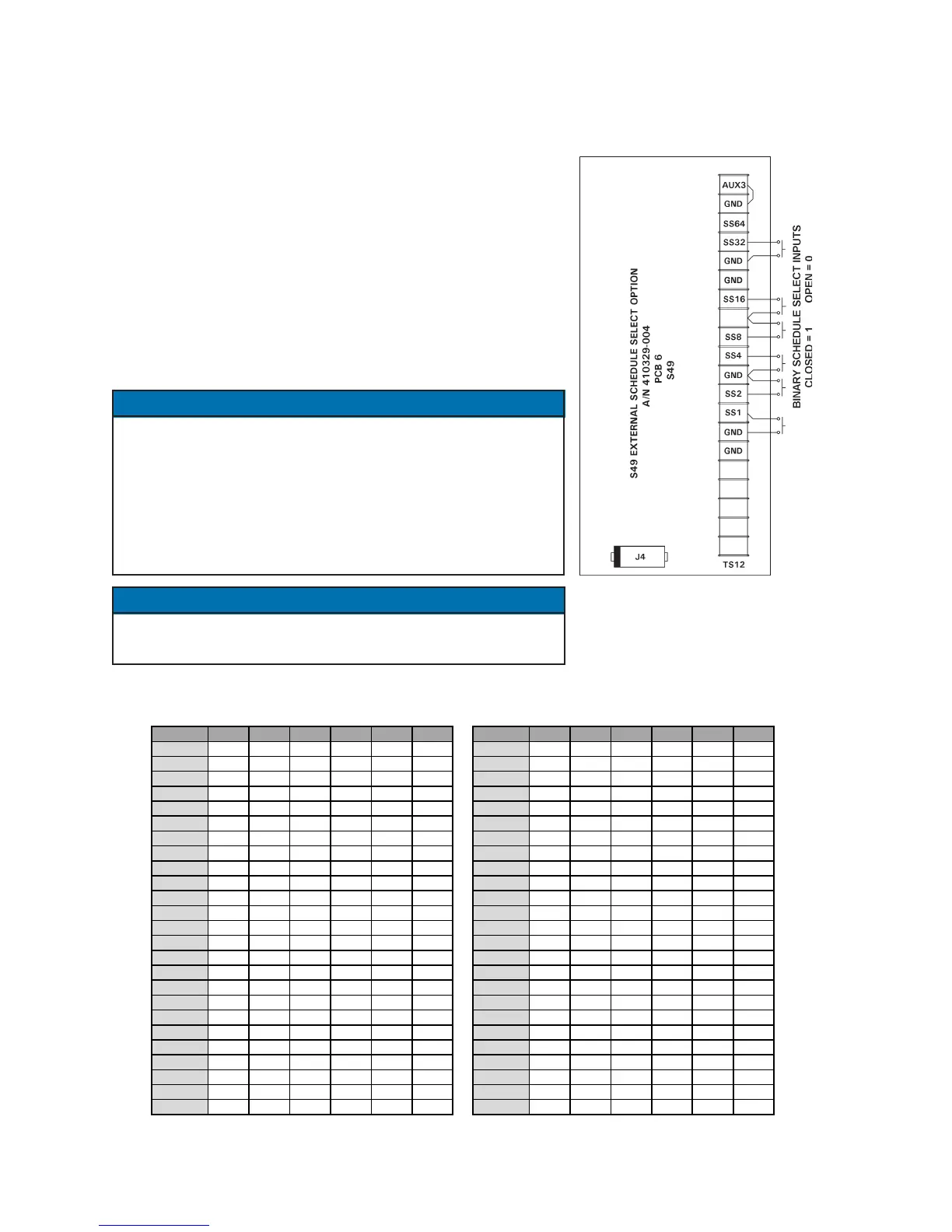

Figure 5-12. Switch closure
connections
5.4.3 SCHEDULE SELECT –
S.S.S.S.
S.S.S.S.
S.S. (cont.)
SCHED SS1 SS2 SS4 SS8 SS16 SS32 SCHED SS1 SS2 SS4 SS8 SS16 SS32
00 000000 25 100110
01 100000 26 010110
02 010000 27 110110
03 110000 28 001110
04 001000 29 101110
05 101000 30 011110
06 011000 31 111110
07 111000 32 000001
08 000100 33 100001
09 100100 34 010001
10 010100 35 110001
11 110100 36 001001
12 001100 37 101001
13 101100 38 011001
14 011100 39 111001
15 111100 40 000101
16 000010 41 100101
17 100010 42 010101
18 010010 43 110101
19 110010 44 001101
20 001010 45 101101
21 101010 46 011101
22 011010 47 111101
23 111010 48 000011
24 000110 49 100011
If binary inputs provide decimal equivalent of 50 or above,
control will display schedule 49.
In this mode, the operator cannot select schedules using
the Front Panel in OPERATE mode and can only initiate
sequence beginning with dialed schedule using TS1-FS3.
Function of the other two initiation inputs TS1-FS7 and
TS1-FS11 is unchanged; i.e., TS1-FS7 is dedicated to
initiate only on schedule 10, and TS1-FS11 is dedicated to
initiate only on schedule 20.
or 600541-009 (EN1000) – see Appendix C for installation instructions. These six dry contact
closure inputs (approximately 24 VDC) make all 50 schedules remotely available to the operator
or machine process control system.
In this mode, initiation inputs (TS1-FS3 and S49 Option PCB
TS12-SS1 through TS12-SS32) are dedicated as follows:
1. Select one of 50 schedules by an external device or
operator acting on TS12-SS1 through TS12-SS32. See
Switch Closure Connections diagram (Figure 5-12)
and corresponding SCHEDULE SELECT table
(Table 5-2).
2. Initiate sequence beginning with the selected schedule
using TS1-FS3.
