3.8 CONTACTOR SPECIFICATIONS (cont.)

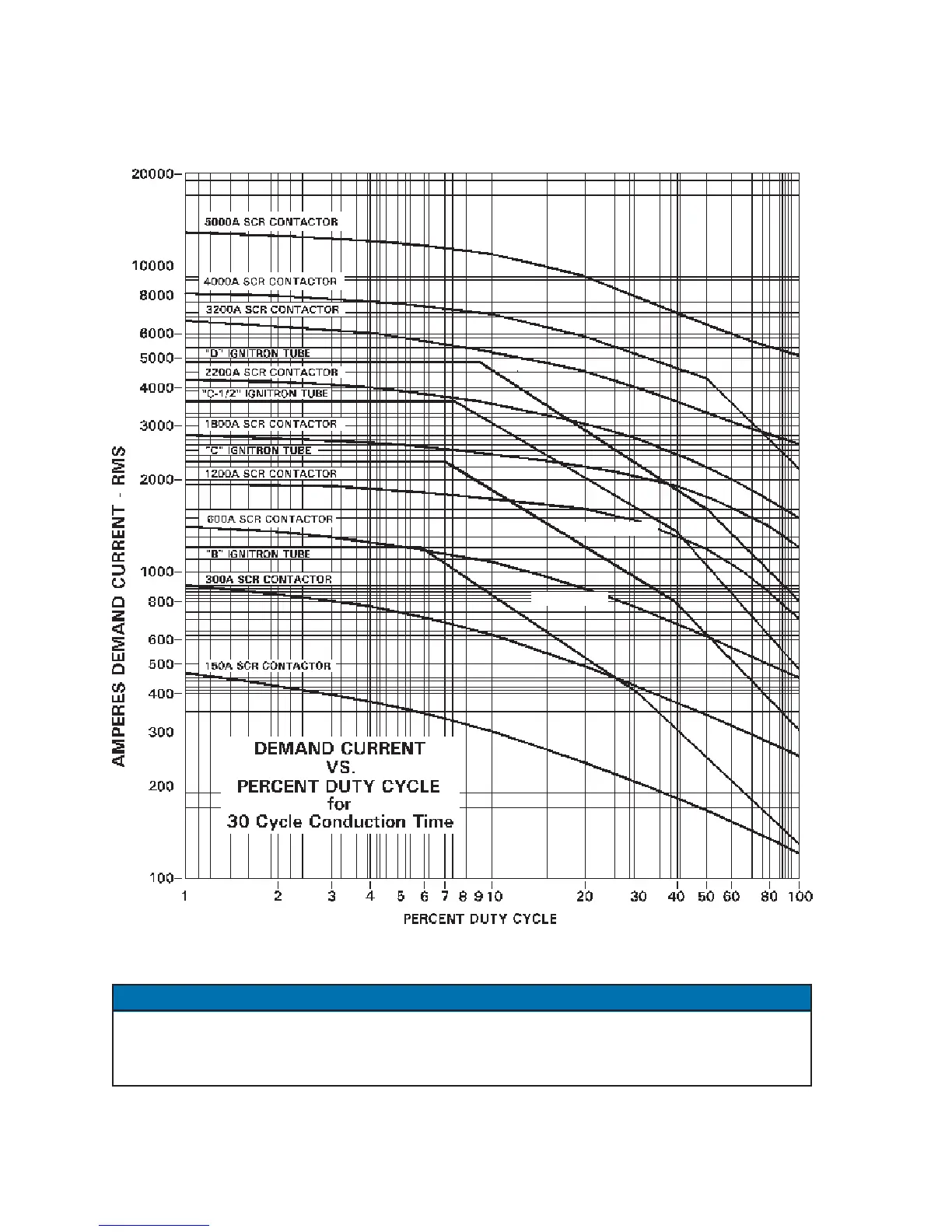

Figure 3-15. Demand Current vs. Percent Duty Cycle
NOTICE
Ignition tubes for reference only.
SCR Contactors available for EN1000/EN1001 are: 150A, 300A, 1200A,
1800A, 2200A, and 3200A (indicated by arrows).
XX
XX
X
Example 1
XX
XX
X
Example 2
