ENTRON Controls, LLC. • 700120S • Page 17
3.0 INSTALLATION
The EN1000 and EN1001 Series Controls can be provided in different cabinet styles.
3.1 INSTALLATION AND MOUNTING DIAGRAMS – “S” CABINET

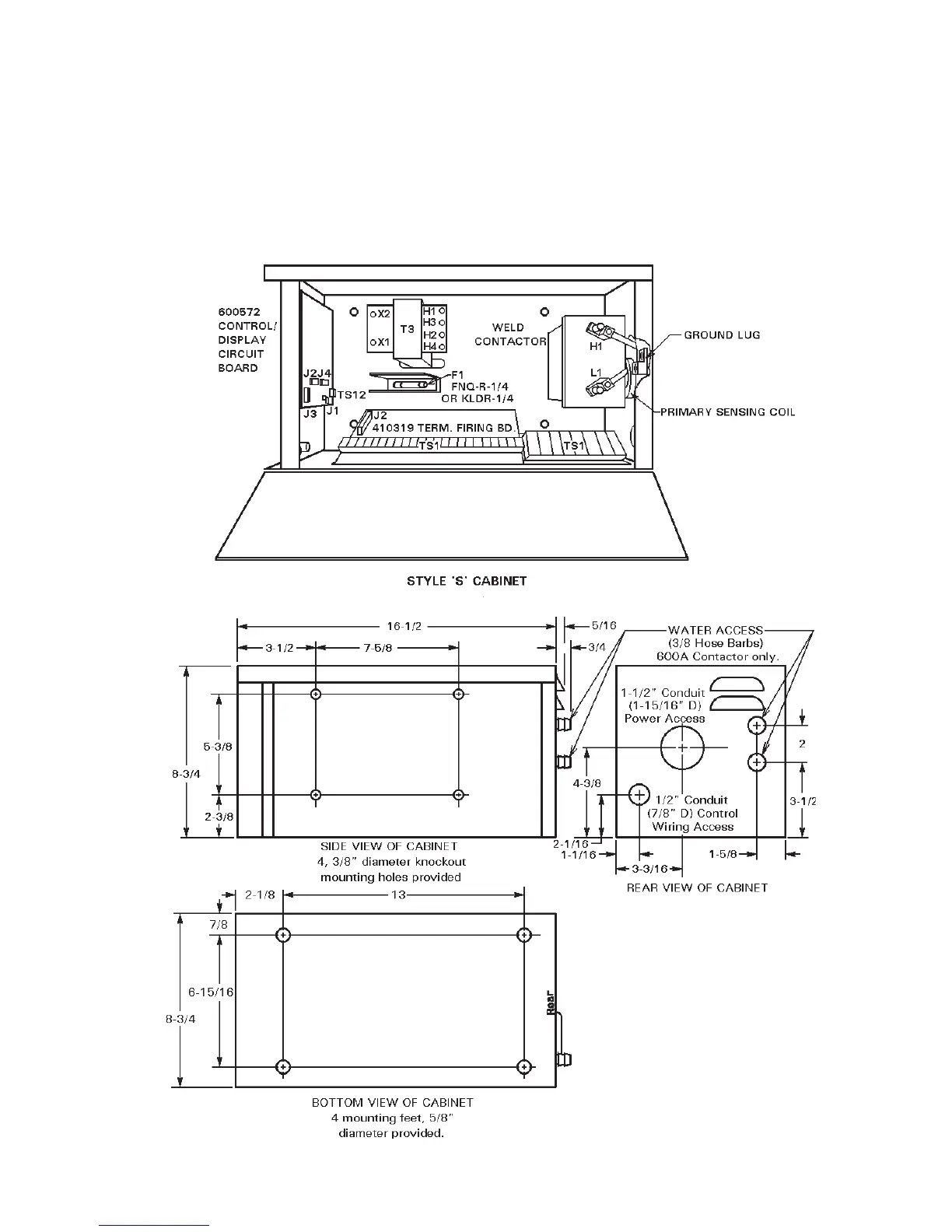

The installation and mounting diagrams for “S” Cabinet are shown in Figure 3-1. Available
contactors for “S” Cabinet – 150A, 300A, and 1200A.
Figure 3-1. Installation and mounting diagrams for Style “S” Cabinet
