The first schedule of a CHAINED sequence can be any of the 50 possible. In CYCLE MODE

0202

02, a scheduled sequence is CHAINED immediately to the next schedule (numerically 23, 24,

25, etc.). When initiated (foot switch), the sequence takes place as shown in Figure 6-3. The

first schedule of the CHAINED sequence is called N.

While schedule N is sequencing, the times and parameters will be in accordance with those

stored in schedule N. When schedule N has finished, the sequence jumps to schedule N+1.

Schedule N+1 is then performed and so on until the sequence encounters a

0000

00,

0101

01, or

0303

03 in the

CYCLE MODE function.

Within the CHAINED sequence, the control will encounter schedules programmed with the

following CYCLE MODES and will react as follows:

0000

00 NON-REPEAT: The sequence will end in NON-REPEAT mode. The SCHEDULE display

will then return to the first initiated sequence.

0101

01 REPEAT: The sequence will start over at the initiated sequence and continue as

explained in CHAINED mode.

0202

02 CHAINED: The SCHEDULE display will increment by one and continue as explained

in CHAINED mode.

6.2.3 CHAINED – CYCLE MODE=

0202

02 (cont.)

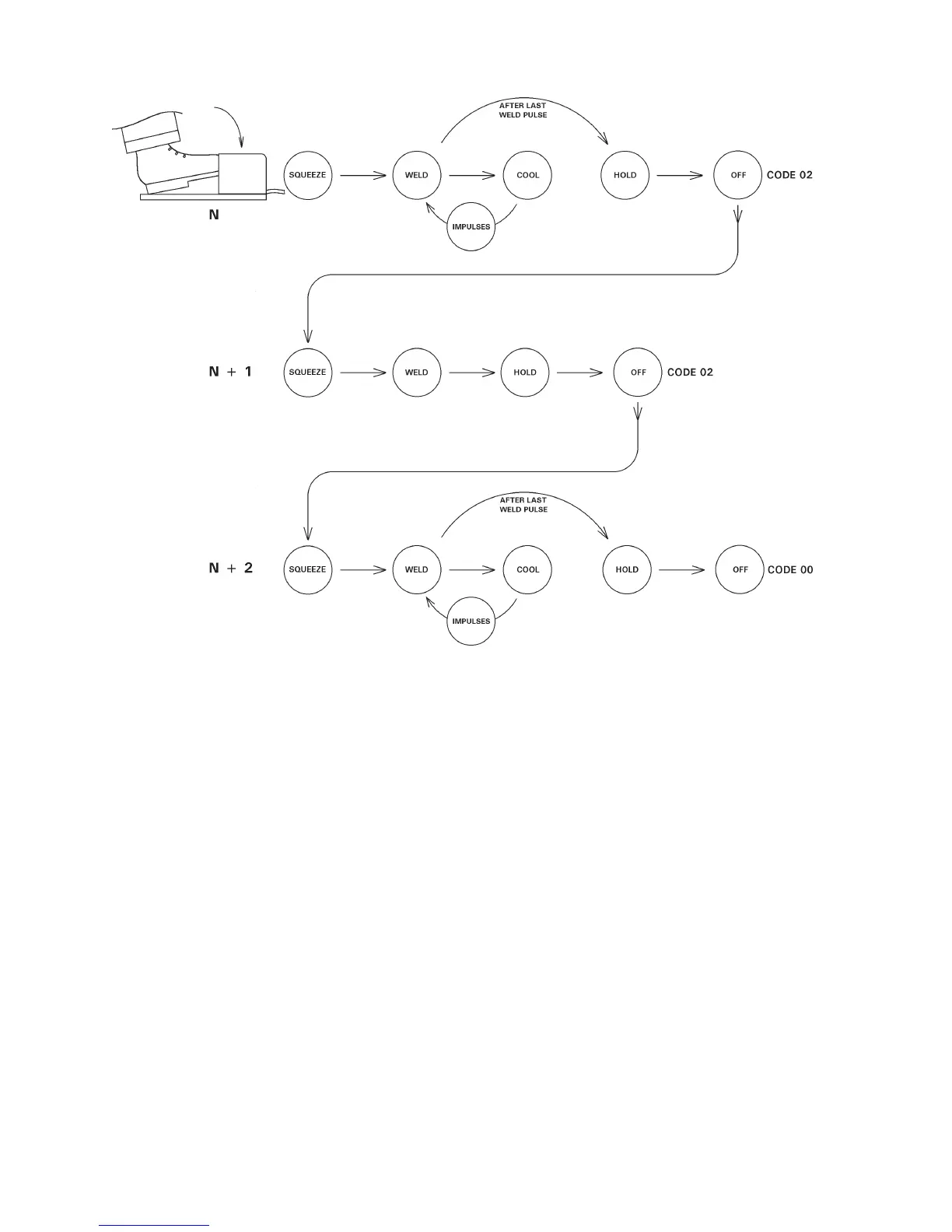

Figure 6-3. CHAINED sequence
