Page 140 • 700120S • ENTRON Controls, LLC.

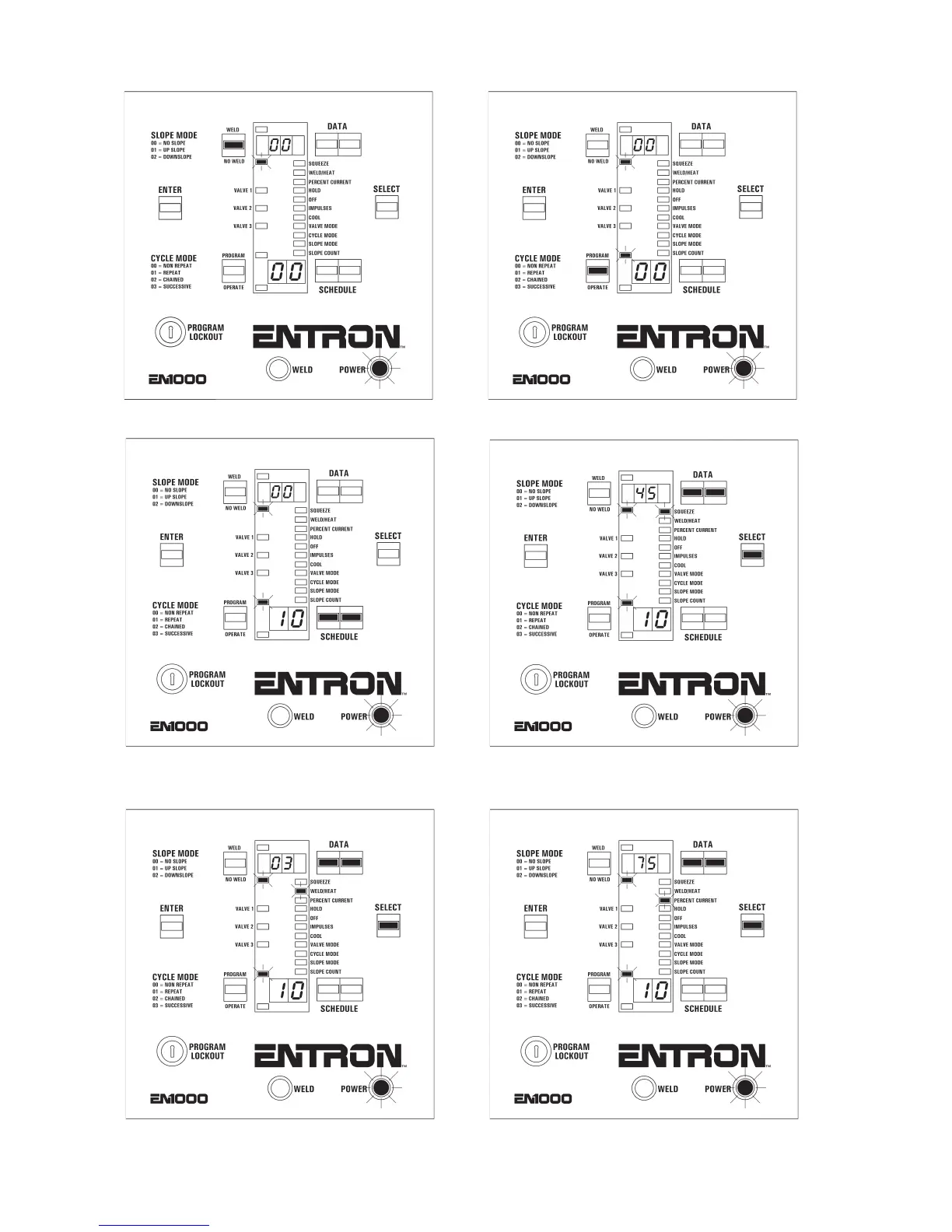

Figure B-7. Put control in NO WELD Figure B-8. Put control in PROGRAM mode
Figure B-9. Choose SCHEDULE to program
Figure B-10. SELECT SQUEEZE and
program 30 to 60 cycles
Figure B-12. SELECT PERCENT
CURRENT and program 70% to 80%
Figure B-11. SELECT WELD/HEAT and
program 2 to 3 cycles
APPENDIX B PROGRAMMING AND SETUP (cont.)
