Display contents and their significance

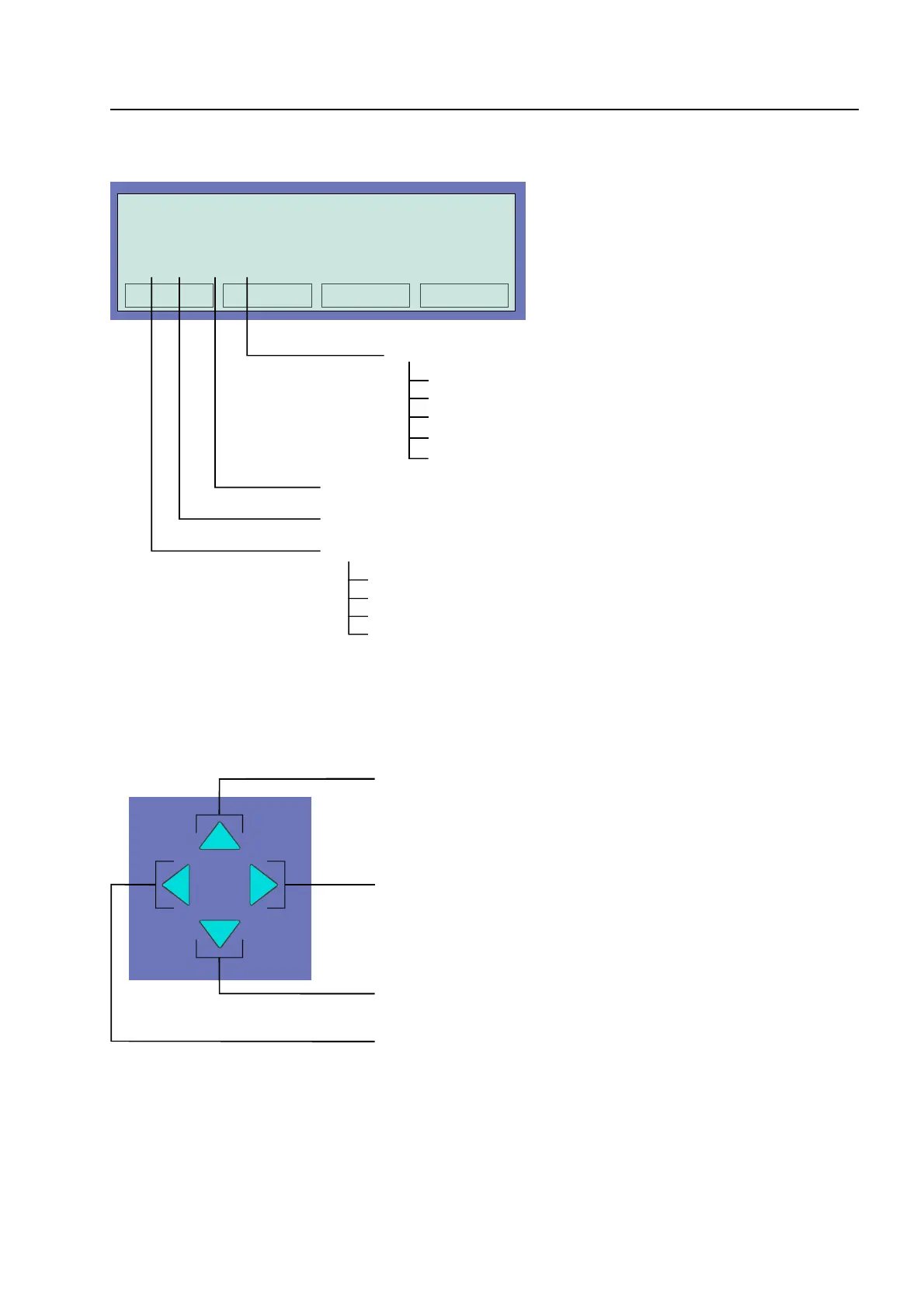

Fig. 22: Display and significance
Fig. 23: Cursor keys
1) Initial / last message with next higher priority
2) Next message with equal priority
3) Initial / last message with next lower priority
4) Prior message with equal priority
Commissioning / Servicin
g
0 Zxx Pxx L:00021??????????????????????????
Control number (01 to 31) with which data calibration is in progress
Decimal display (00 to 99) of the communication status (only factory use)
Status of the data calibration
0 = data calibration OK
S = Control panel is transmitting
E = Control panel is receiving
B = Data calibration terminated/faulty
essernet
®
status list for control panel No. 1 to 31
0 = essernet connection OK
1 = no data from terminal 3/4 (short circuit/open connection)
2 =
no data from terminal 1/2 (
short circuit/open connection)
9 = no communication between FACP and essernet
®
module
? = customer data not programmed
