Fire Alarm Computer 8000C / M
Page 57
1
A

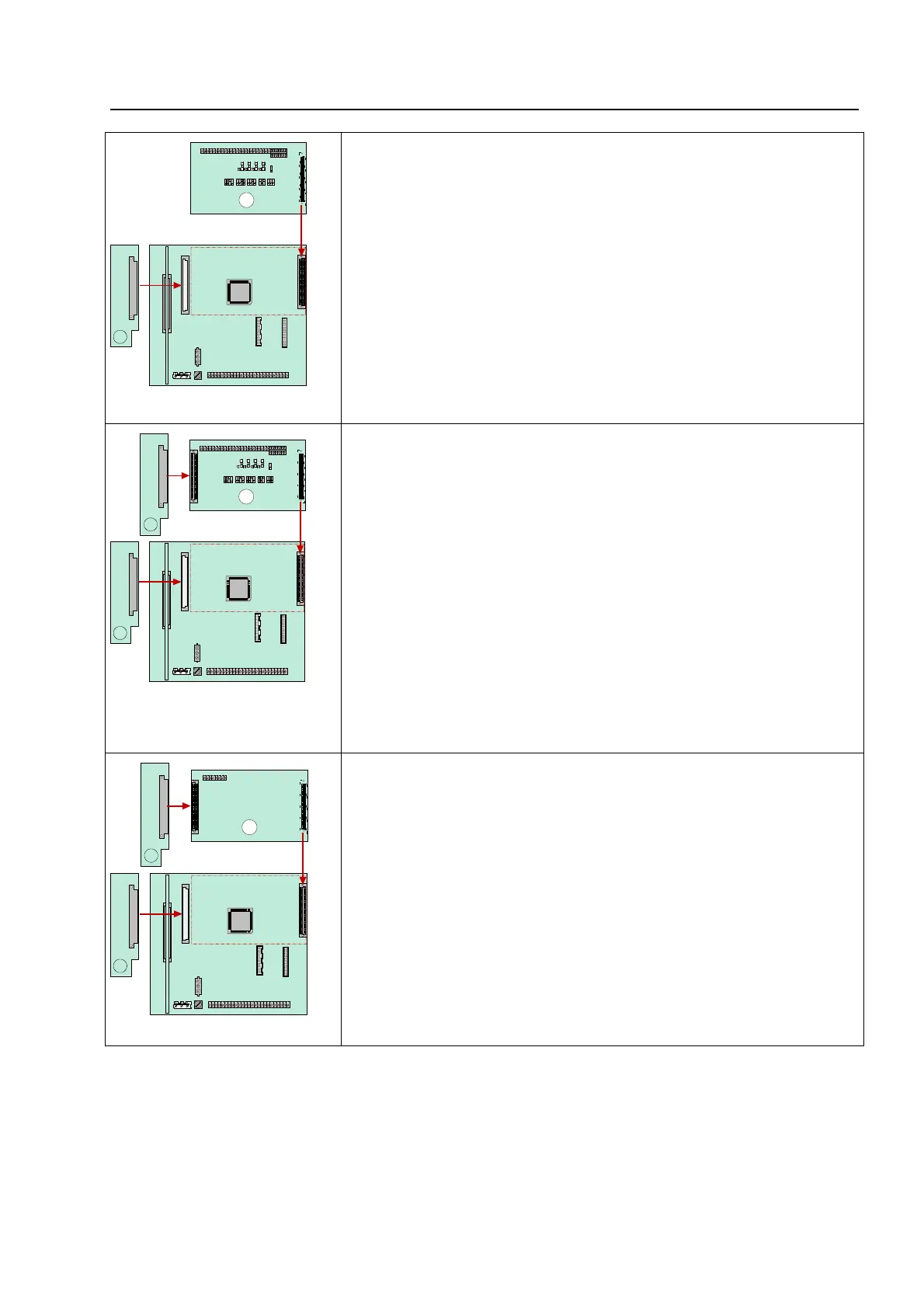

FACP 8000C - Example 1:
Basic module with a micro module and a field device module (Pa
rt
No. 772420 without micro module slot) on slot 1 of the basi
c
module.
With this configuration, for example, a single control panel with an
analog loop and max. 127 bus subscribers can be implemented.
1
2
B
FACP 8000C - Example 2:
Basic module with a micro module and a field device module (Part
No. 772418 with micro module slot) on slot 1 of the Basic module.
With this configuration, for example, an essernet
®
compatible
control panel with an analog loop and max. 127 bus subscribers or
a single control panel with two analog loops can be implemented.
1
2
C
FACP 8000C - Example 3:
Basic module with a micro module and a extension module (Part
No. 772419 ) on slot 1 of the Basic module.
This configuration is usually employed in essernet
®
networks wit
h
an analog loop and max. 127 bus subscribers.
Due to the lack of the field device module, no connection i
s
available for the fire department key pad and the master box
.
These devices can be connected to a different control panel of th
e
essernet
®
.
Configuration options FACP 8000
C
