Esser 8000C - Page 59

Fire Alarm Computer 8000C / M
Page 59

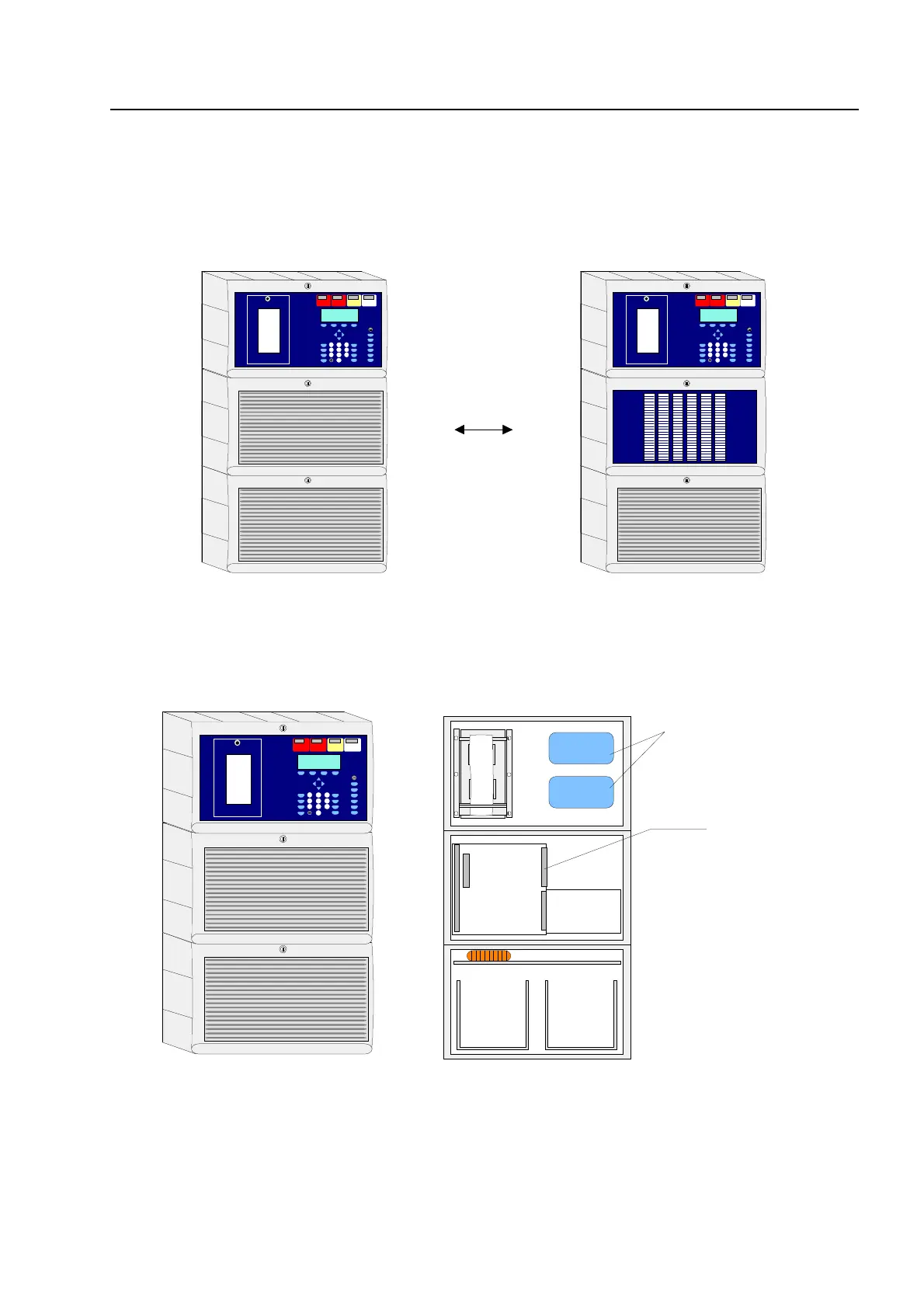

Fire alarm control panel 8000M in three-piece housing with integrated printer.
The integrated printer and the operating module front are mounted in the upper housing. Due to
the depth of the printer, the basic module and all of the plug-in cards are integrated into a separate
housing beneath. The emergency power supply with max. two 24Ah batteries can be installed into
the lowest of the three separate housings.
or
Extension hausing 789304
Extension hausing
789303
Ensure that the arrangement of the assemblies corresponds with the presentation shown here
during this configuration. Another distribution is not possible due to the cable length of the
operating module front, the integrated printer and the battery connection cable.
772420 or
772418 or
772419 or
772421
Plug 1:
Space for installation
2 x
esserbus

-transponder
esserbus

-
transponder
esserbus

-
transponder
battery bag
battery bag
Basic module
+
Power supply module
+
micro module slot
Extension module
for
three
micromodule
Configuration options FACP 8000
M
