Fire Alarm Computer 8000C / M
Page 61
On the basic module of the FACP 8000M, only the upper slot (slot 1) can be used for a field device
or extension module. The field device module is supported on this slot only.
The lower slot (slot 2) of the basic module is reserved for the extension module Part No.772421
(with three micro module slots). Only this extensions module can be plugged onto the slot 2.
Configuration of the FACP 8000M
Plug 1Plug 2
A
B
C
D
D
Power supply
module
Basic module

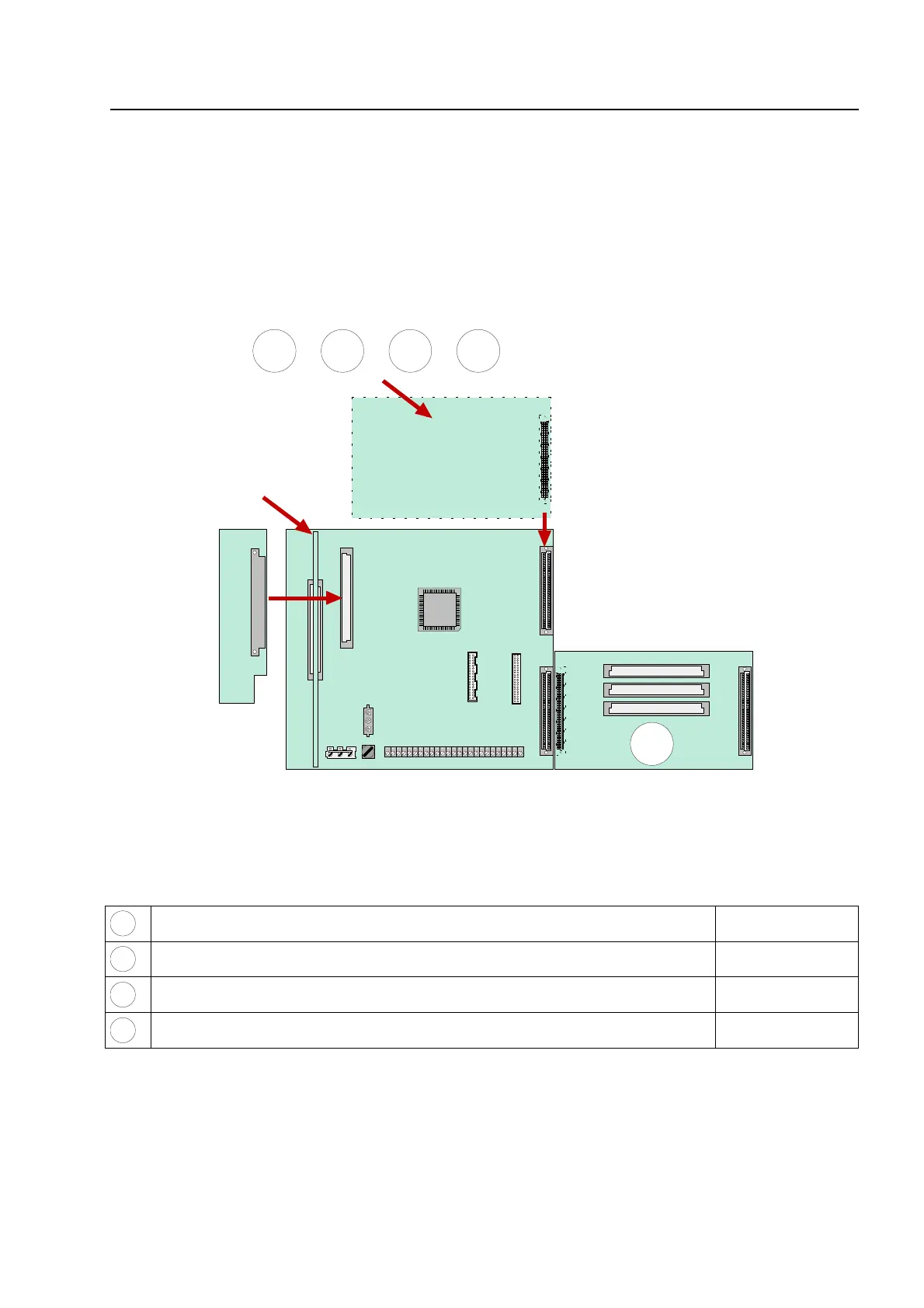

Fig. 6: Configuration options (FACP 8000M)
A
Field device module Part No. 772420
B
Field device module with one micro module slot Part No. 772418
C
Extension module with one micro module slot Part No. 772419
D
Extension module with three micro module slots (FACP 8000M only) Part No. 772421
Configuration options FACP 8000
M
