evertz 3025EMC - Selective Bypass; Figure 4-31: Selective Bypass Tab

To Next Page

To Previous Page

3025EMC Master Control Switching & Channel Branding

Revision 3.0.3 Page 89

info

debug – HIGHEST LOGGING LEVEL



If logging of the raw tx/rx Serial or Q-Link data is required for logging purposes

then “.*” should be used as the logging level. For example, to debug M2100

automation control related issues.

4.13. SELECTIVE BYPASS

The EMC allows the lines in the vertical period to be either blanked or bypassed. The recommended

setting for Vertical Blanking Selective Bypass is lines 6 & 7 (SD) or lines 7 & 8 (HD) to be blanked. For

more information regarding the Vertical Blanking configuration see section 4.4.2.

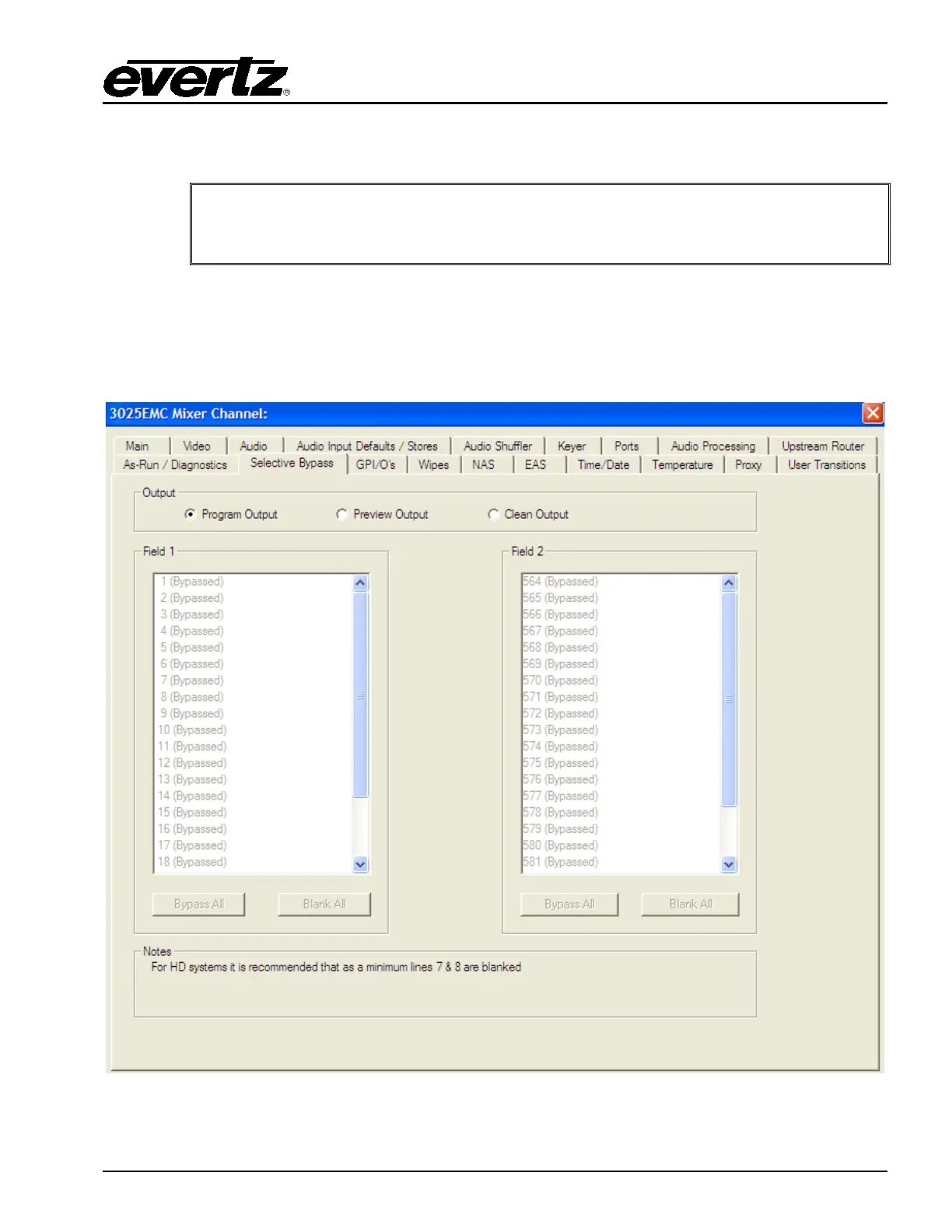

Figure 4-31: Selective Bypass Tab
