3025EMC Master Control Switching & Channel Branding
Revision 3.0.3 Page 77

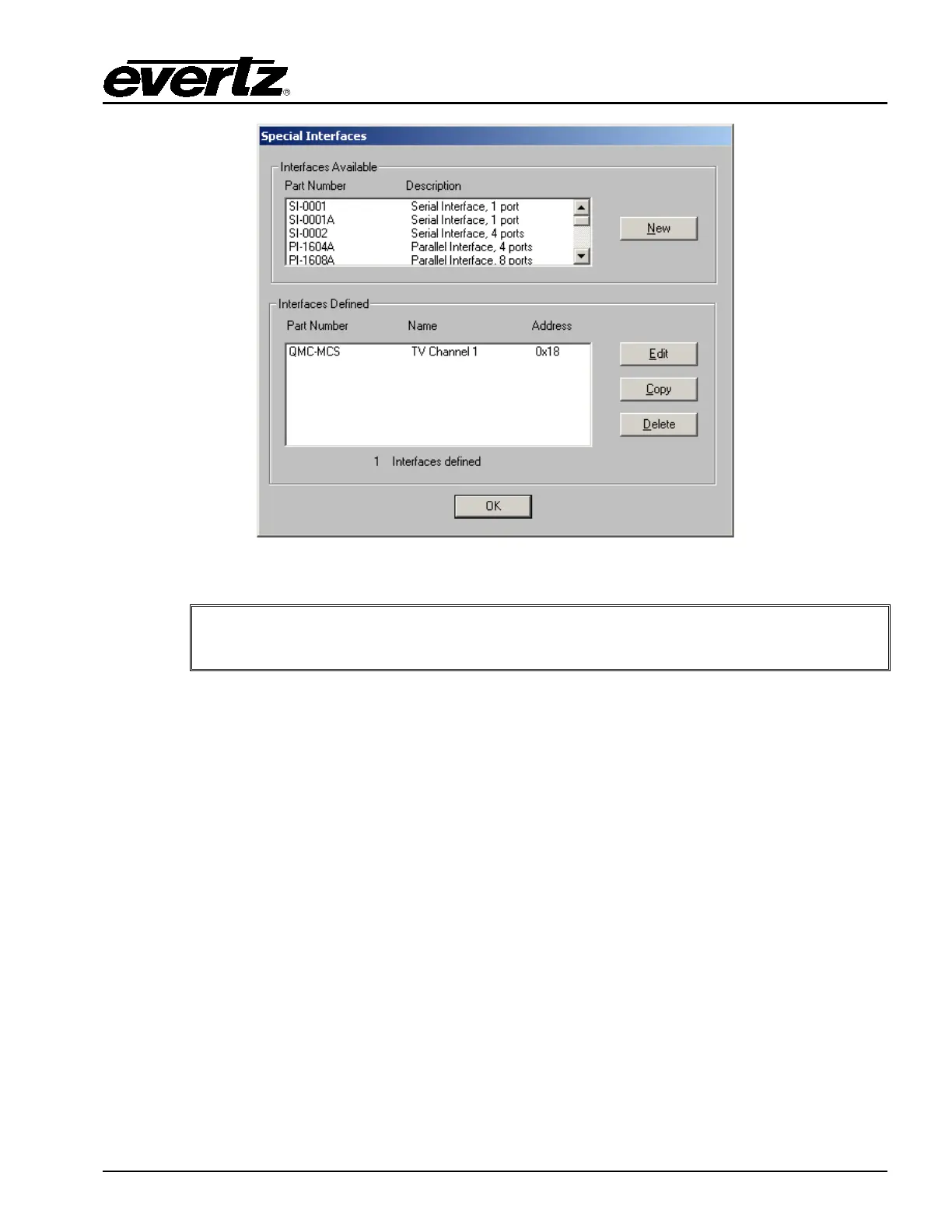

Figure 4-26: WinSetup for Special Interfaces on Evertz router
Write down the QLINK address specified for the QMC-MCS interface. This address is
used by the EMC to communicate to the router over the shared QLINK bus.
4.11. AUDIO PROCESSING
This tab enables the user to view and edit the Dolby-E settings. The EMC with the 3025AP module
currently supports 2 Dolby Cat552 decoder modules and 2 Dolby Cat559 encoder modules.
To support Dolby-E decoding on the PGM and PST inputs requires a pair of Cat552 decoder modules.
The Additional Options can be enabled here.
