3025EMC Master Control Switching & Channel Branding
Page 124 Revision 3.0.3
6.1.3. QMC-CP-2048E
The 2RU control panel is typically used for facilities have a QMC-CP-1000E and QMC-CP-E panel and
are looking for additional buttons for menus, etc. The QMC-CP-2048E is known as a buddy panel.
When configured as such, the QMC-CP-2048E is logically associated with the QMC-CP-1000E or QMC-
CP-E to allow for users to expand controls. As with all the control panels for the EMC, the LCD buttons
are fully configurable to suit the customer application. The LCD buttons also offer different colours to
show status.

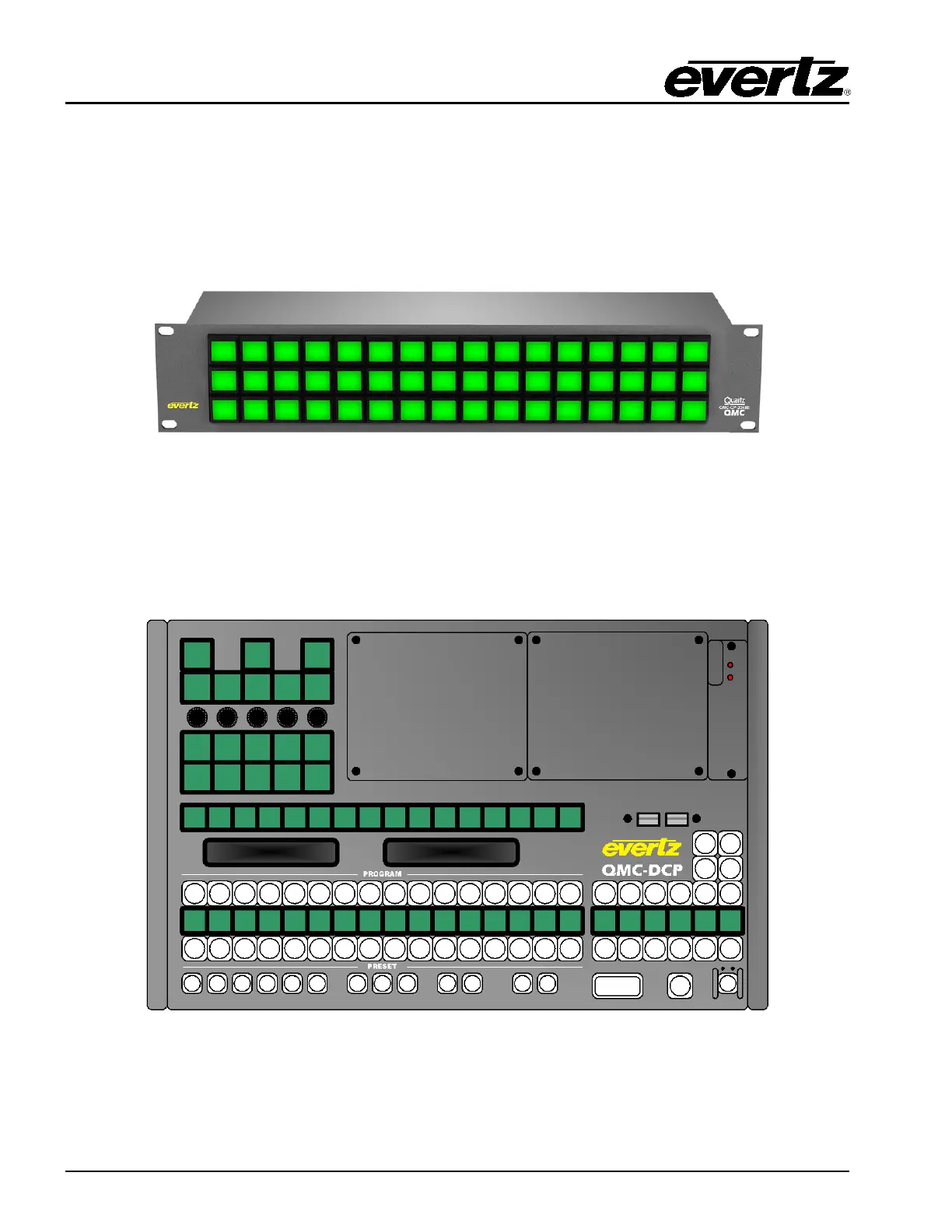

Figure 6-3: QMC-CP2048E Control Panel
6.1.4. QMC-DCP & EMC-DCP
The 19” wide desktop control panels are typically used for facilities that require a high level of manual
intervention. These are facilities that tend to live events. Also, the QMC-DCP is used for facilities that
require a traditional full size master control panel.
Figure 6-4: EMC-DCP Panel
