evertz 3025EMC - Table 8-1: Temperature Probe Extender Cable

3025EMC Master Control Switching & Channel Branding
Page 166 Revision 3.0.3
3025EMC End
Temperature Probe End
9 pin D
Male
Pin
Belden
9729
9 pin D
Female
Pin
1
1
TxD
2
-------1a------
RxD
2
RxD
3
-------1b------
TxD
3
4
Rx Gnd
4
Gnd
5
---drain 1----
Gnd
6
6
7
7
Power +V
8
-------2a------
Power +V
8
9
9
Frame
Gnd
Shield
---drain 2----
Frame
Gnd
Shield

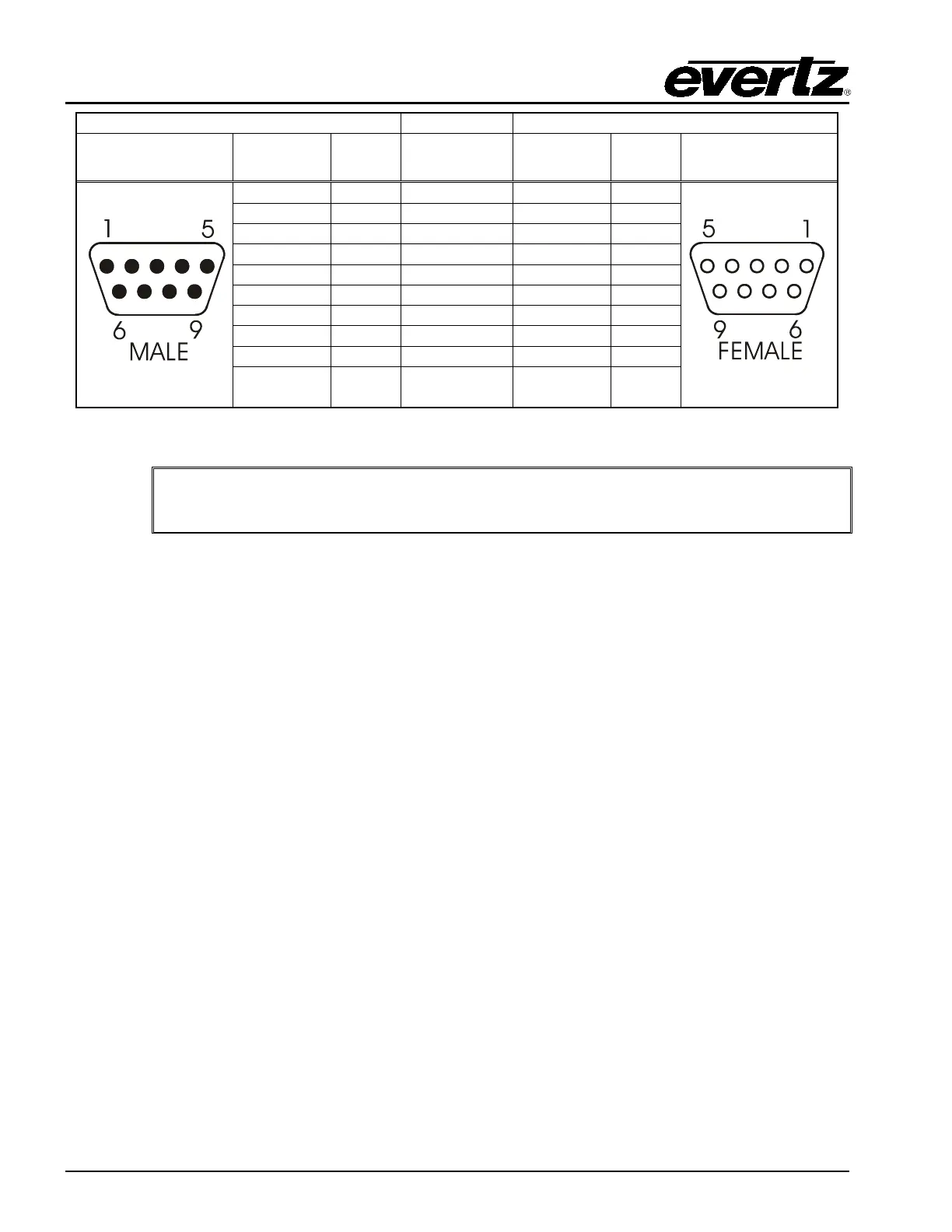

Table 8-1: Temperature Probe Extender Cable

The temperature probe cable should not exceed 1000 feet.
Because the Temperature Probe operates at a relatively low serial baud rate (1200), it can take a few
minutes for the communications between the EMC and temperature probe to initialize fully.
For debugging the EMC and probe connection the “tsnsorsoft” logging can be enabled in the syslog.conf
file. This will display serial or IP logging of the comms between the EMC and the temperature probe. For
more details on logging configuration see section 4.10.5.
