Voiceover 1: If VO1 is configured to take AES inputs then the shuffler will be 4 inputs by 16
outputs.
If VO1 is configured to take AES AP inputs then the shuffler will be 4 inputs by 16
outputs.
If VO1 is configured to take De-embedded inputs then the shuffler will be 16 inputs
by 16 outputs.
If VO1 is configured to take AES MADI inputs then the shuffler will be 8 inputs by
16 outputs.
Voiceover 2: Same as VO1.
Voiceover 3: If VO3 is configured to take De-embedded inputs the shuffler will be 16 inputs by
16 outputs.
If VO3 is configured to take AES MADI inputs then the shuffler will be 8 inputs by
16 outputs.
Voiceover 4: If VO4 is configured to take De-embedded inputs then the shuffler will be 16 inputs
by 16 outputs.
If VO4 is configured to take Audio Clip inputs then the shuffler will be 8 inputs by
16 outputs.
If VO4 is configured to take AES MADI inputs then the shuffler will be 8 inputs by
16 outputs.
Voiceover 5: If VO5 is configured to take De-embedded inputs the shuffler will be 16 inputs by
16 outputs.
If VO5 is configured to take AES MADI inputs then the shuffler will be 8 inputs by
16 outputs.
Each of the voiceover buses (when selected from the Audio Input drop-down menu) also has “Voiceover
options”.

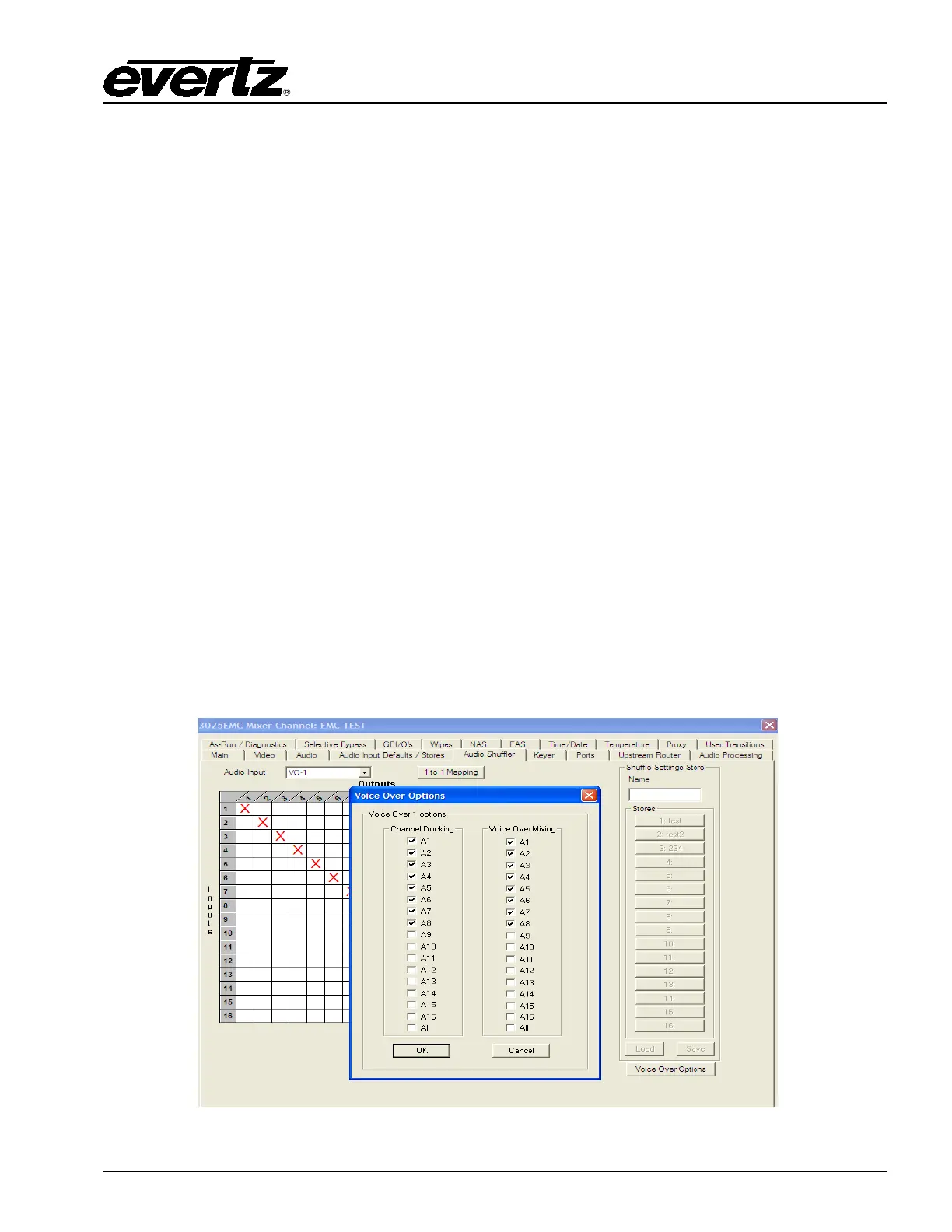

Figure 4-20: Voiceover Duck & Mix
