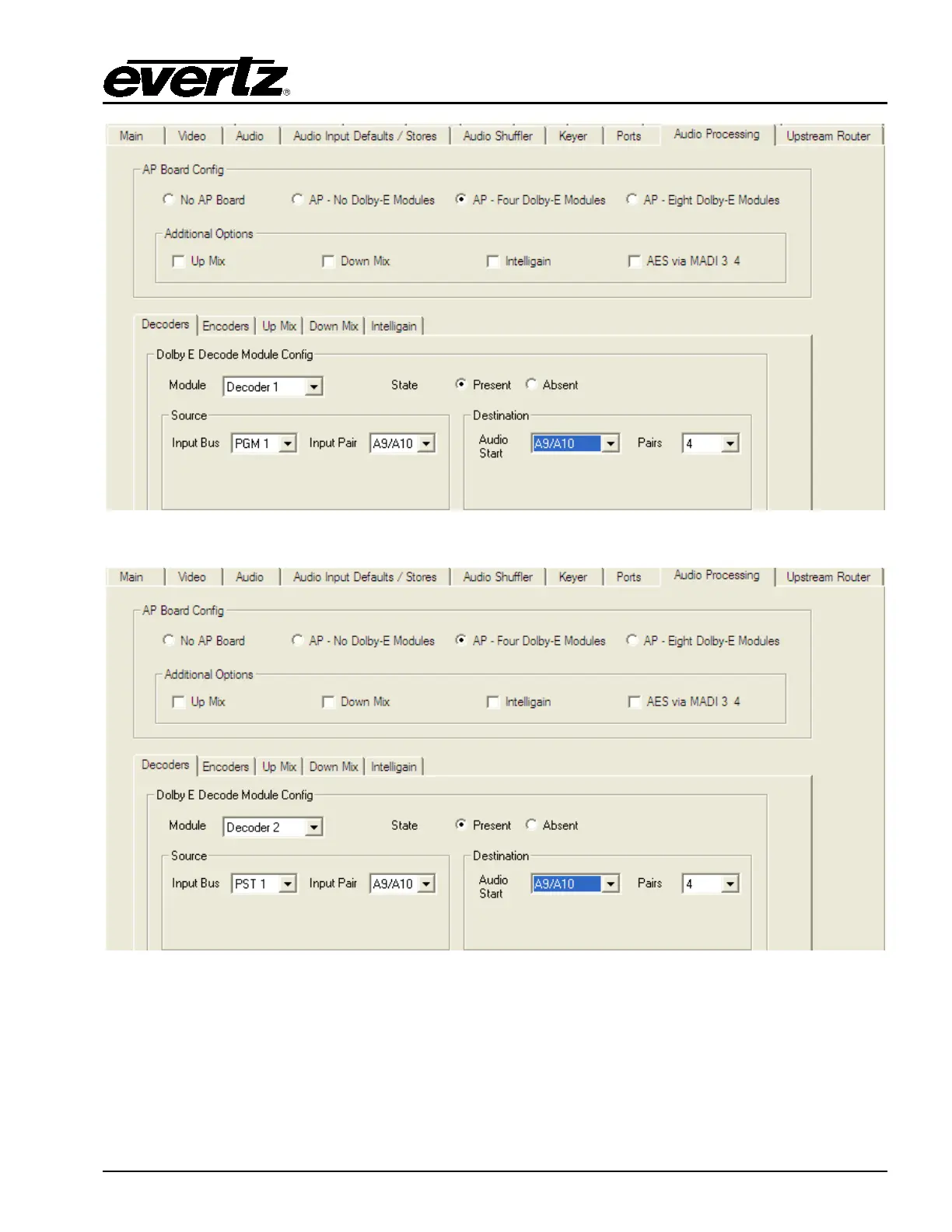

Figure 9-9: Metadata Routing Example 1 – PGM Decoder Configuration
Figure 9-10: Metadata Routing Example 1 – PST Decoder Configuration
The DE encoders are configured so that re-encoded DE will be embedded to PGM audio channels
A7/A8 and A9/A10. This requires the use of both encoder #1 and encoder #2. For the purpose of this
example DE will also be embedded to CLN audio channels A7/A8 and A9/A10.
