3025EMC Master Control Switching & Channel Branding
Page 120 Revision 3.0.3
5. CONFIGURING SOURCE NAMES AND ROUTER SIZE
The EMC will typically interface with an upstream router. This section describes how to configure the
sources and router size that is available to the EMC.
In the main EMC-Setup window, select Sources and you will see the following window:

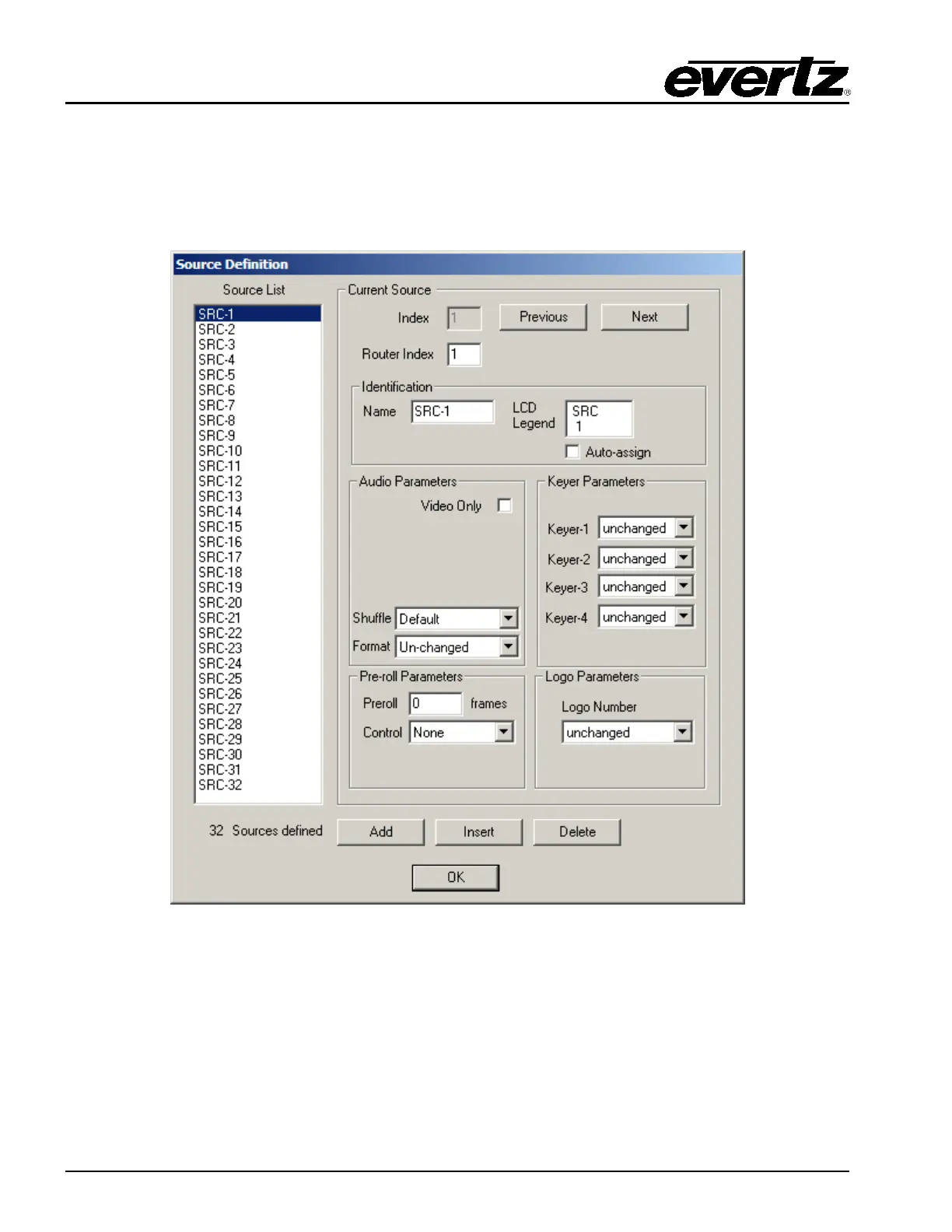

Figure 5-1: EMC-Setup Source Table
This dialog box creates the source definitions and other parameter that may be associated with the
source. The options are:
Add: Add a set of sources.
Insert: Insert a source to the list.
Delete: Delete a source from the list.
