3. EMC CONFIGURATION
This section describes the configuration of the 3025EMC Switcher. In most applications the 3025EMC
will be controlled by an automation system and several industry standard third party systems are
supported. A range of LCD button control panels can be added to the EMC, as a backup or simply for
manual control.
An upstream router is used to select the input sources available to the 3025EMC and this supports
Evertz routers as well as most third party routers currently on the market, using a serial RS422 control
port. The 3025EMC will function without the external router i.e. it can work as a simple A/B Switcher.
Upstream Router
Control Panel
QMCSetup /
Overture
(
on PC)
Automation
System
3025EMC
Master Control
Switcher
VIDEO
Network Switch
Emergency Alert
System
(North America only
)
Temperature Probe
ETHERNET
ETHERNET
ETHERNET
ETHERNET
VIDEO
ETHERNET
SERIAL
SERIAL
SERIAL
Router Controller
SERIAL
QLINK

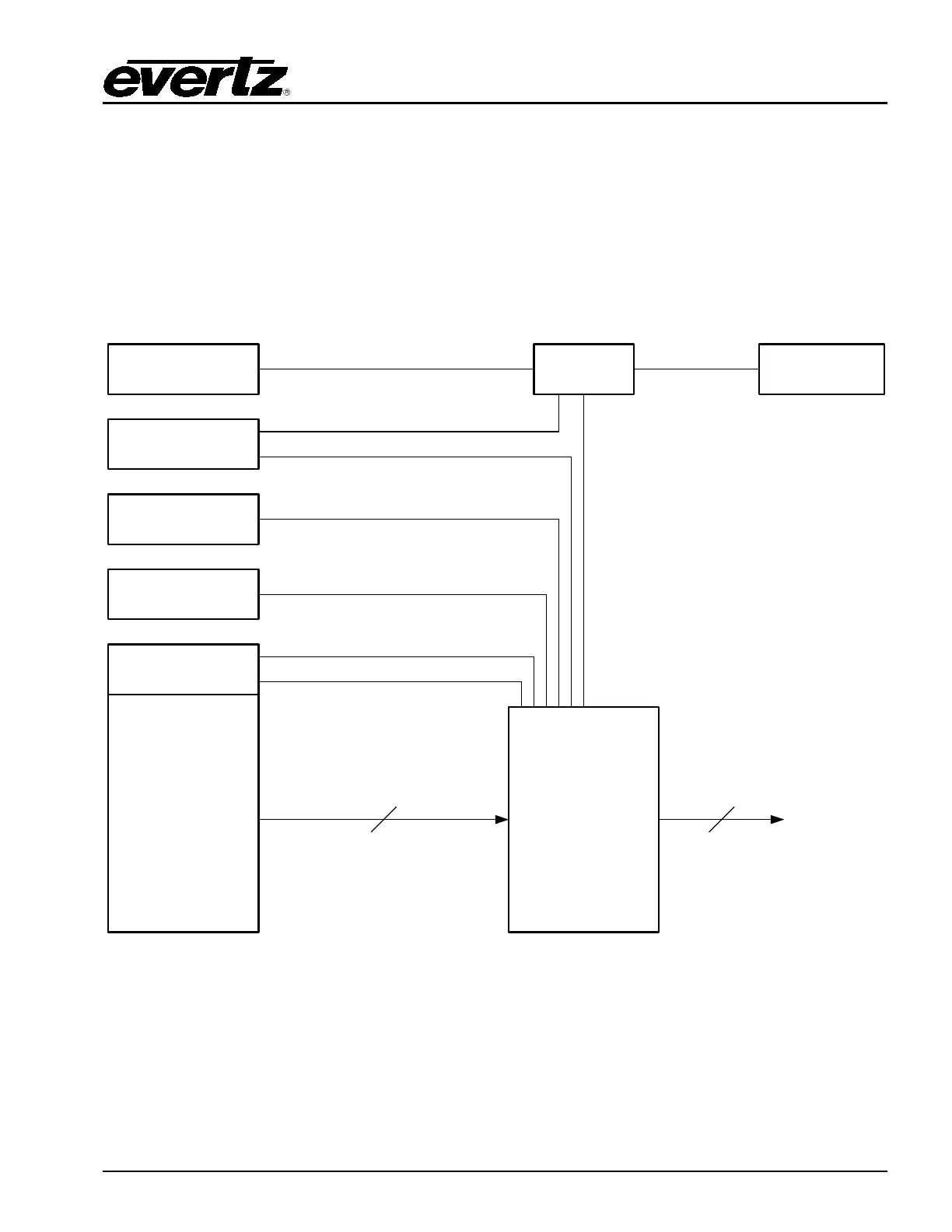

Figure 3-1: 3025EMC System Diagram
