3025EMC Master Control Switching & Channel Branding
Revision 3.0.3 Page 45
4.4. VIDEO CONFIGURATION

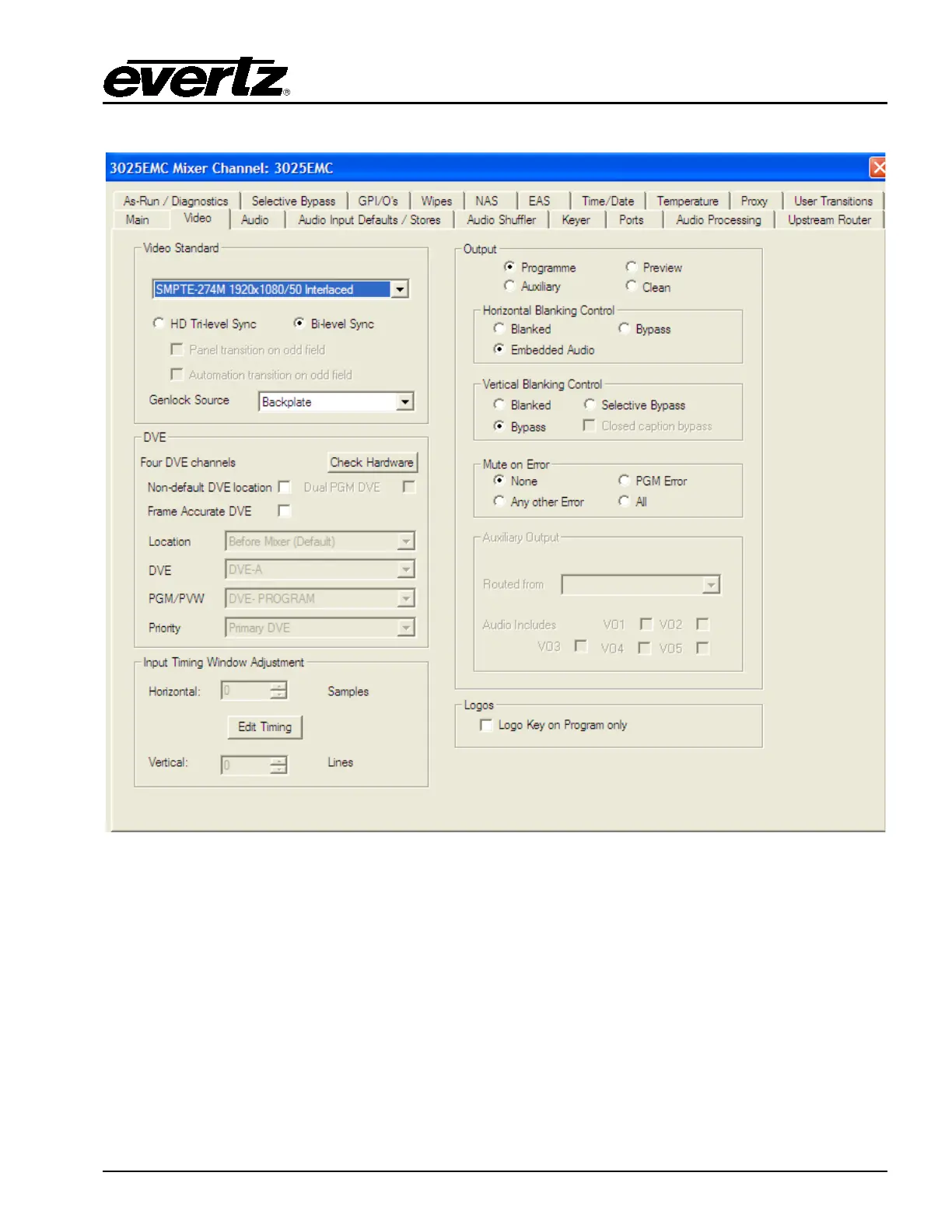

Figure 4-11: Video Tab
4.4.1. Video Standard
This parameter enables you to select a desired video standard. This sets the video standard of the
EMC channel. This section allows for the configuration of the reference signal type of “HD Tri-level
Sync” or “Bi-level Sync” option.
Panel Transition on odd field: This option is only available for 720p/50 and 720p/59.94 video
standards and is for channels that are using Dolby-E. This forces transitions,
DVE Moves and Keyer On/Off air requests that are triggered from a control
panel to start on an odd 625i/525i field (720p frame).
