Location 3 – Mixer Output
This is audio from the output of the audio mixer. This is audio after
any applied gain adjustment,
shuffling and mixing. Although CLN output is an option as a route this is not currently supported.
The video routing of the Auxiliary Bus still applies. The audio monitoring routing is selecting the audio
routing for the audio and has no effect on the video.
Further control of the audio monitoring adjustment can be made using any of the supported control
panels. See section 9.1 for more details.

Please note: When Audio Monitoring is enabled V/O5 is no longer available to be
used as a Voiceover.
4.4.7. Input Timing Window Adjustment
The EMC requires video to be timed with respect to reference input with an accuracy of +/- ½ a video
line. This ensures clean video and audio transitions. The Input Timing Window Adjustment enables
you to set the horizontal position for the input timing window to account for an offset. Click the “Edit
Timing” button and the window illustrated in Figure 4-15 will appear where you can customize the
adjustment settings. The input timing window is only 1 video line wide.

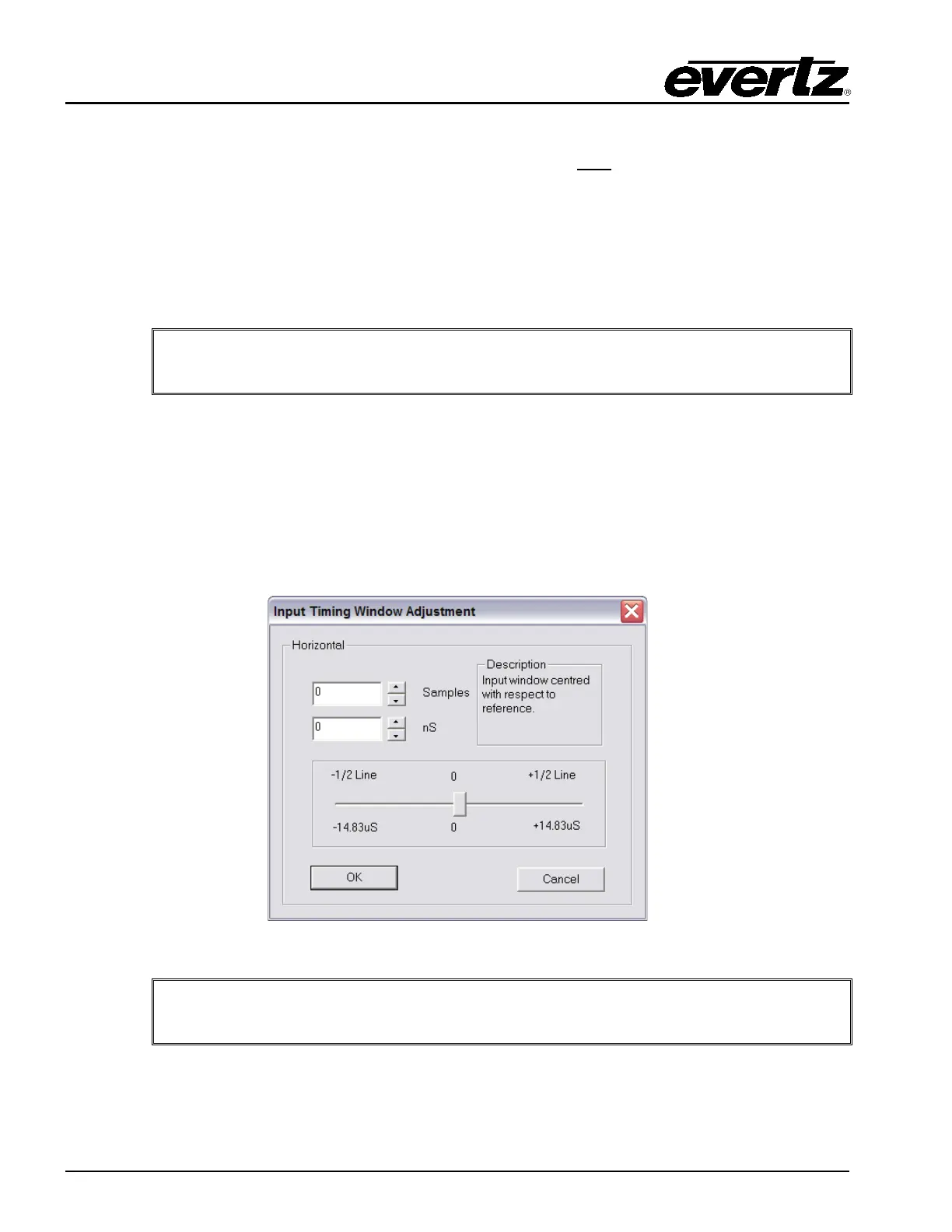

Figure 4-15: Input Timing Window Adjustment

IMPORTANT: The 3025EMC has an input timing window of +/- ½ video line with
respect to reference.
