3025EMC Master Control Switching & Channel Branding
Page 90 Revision 3.0.3
4.14. WIPES

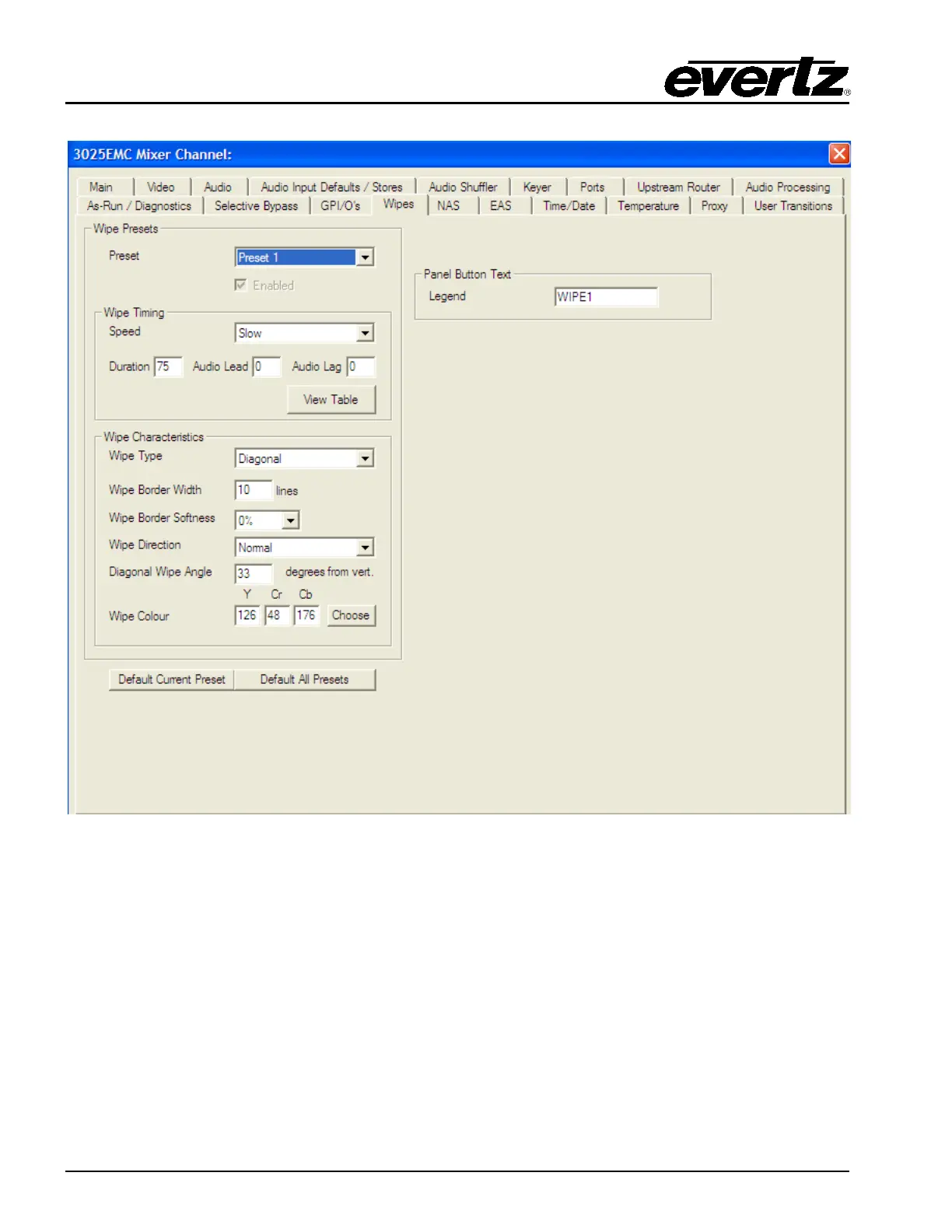

Figure 4-32: Wipes Tab
Preset: The EMC supports up to 5 pre-defined wipes. Each pre-defined preset has a legend name that
will be used on the control panel.
4.14.1. Wipe Timing
Speed: The user can specify 4 wipe speeds (Slow/Medium/Fast/Custom). These can then be
configured to appear on the control panels.
Duration: Enables you to set the total duration.
Audio Lead / Audio Lag: Enables you to the set the amount of Audio Lead and Audio Lag.
