evertz 3025EMC - Gpi;Os; Figure 4-35: Gpi;Os Tab

3025EMC Master Control Switching & Channel Branding
Page 94 Revision 3.0.3
Date: This field sets the date.
Time: This field sets the time.
Time Zone: Select a time zone using the drop down menu.
Server IP: This field sets the NTP Server IP address. The NTP server will be the source for the time
related media and logging.
4.16. GPI/O’S
This tab enables the user to configure the General Purpose Inputs and Outputs parameters.

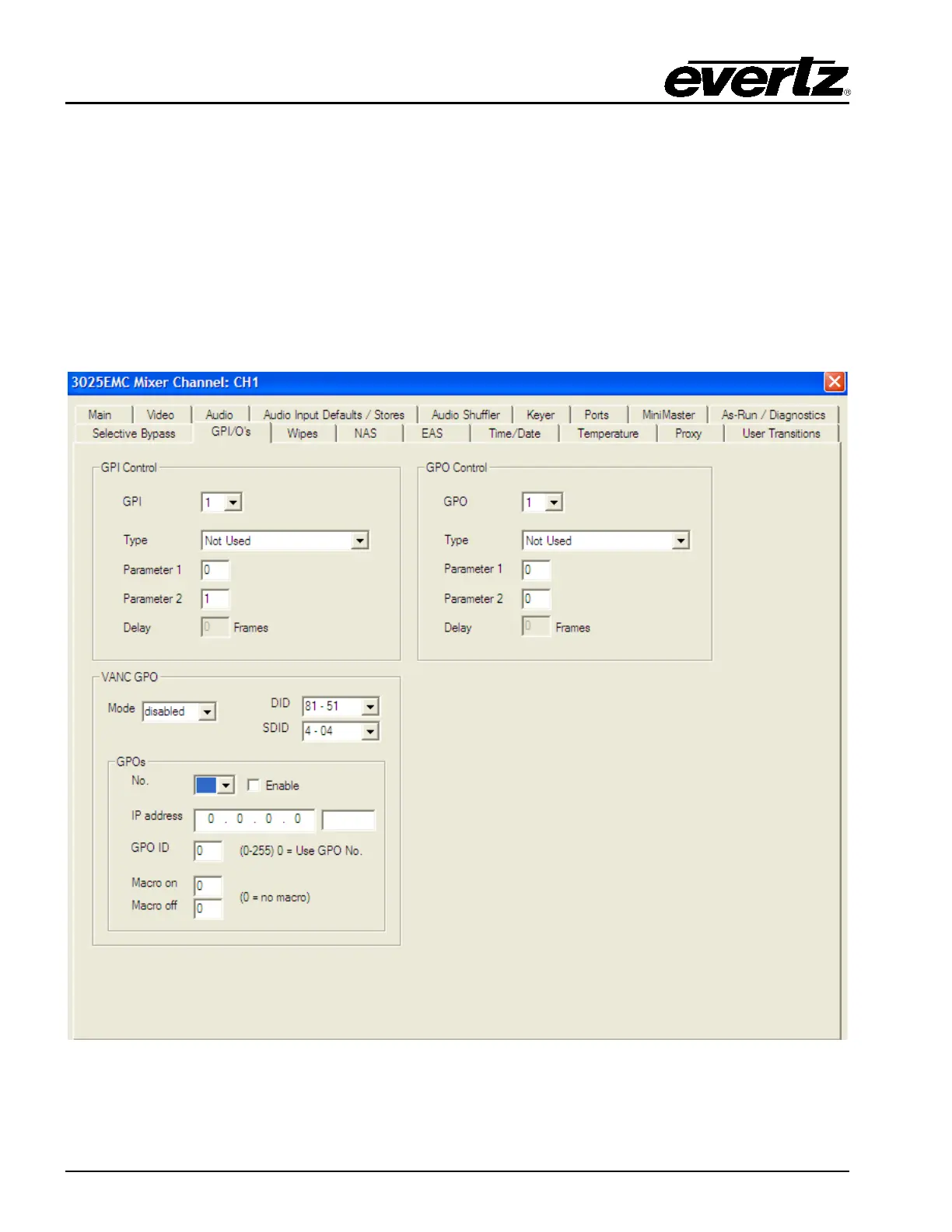

Figure 4-35: GPI/O’s Tab
