4.17.8 Spanning Tree Monitoring
This section provides various STP monitoring displays
4.17.8.1 STP Bridges Status
This display provides a status overview of all STP bridge instances

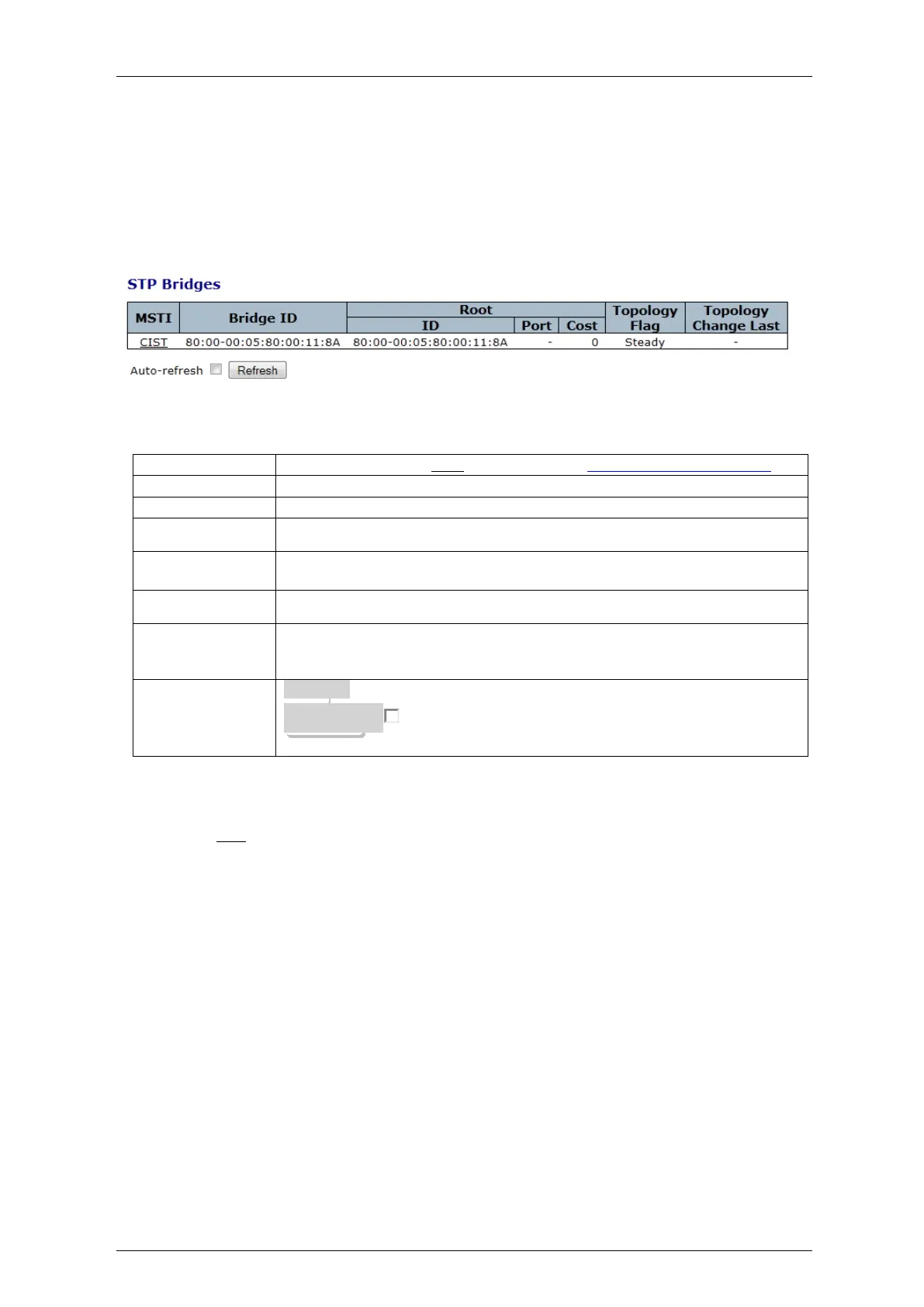

Figure 4-135: STP Bridges
Table 4-129: STP Bridges Parameters
The Bridge Instance. CIST also a link to the STP Detailed Bridge Status
The Bridge ID of this Bridge instance..
The Bridge ID of the currently elected root bridge.
The switch port currently assigned the root port role.
Root Path Cost. For the Root Bridge it is zero. For all other Bridges, it is
the sum of the Port Path Costs on the least cost path to the Root Bridge
The current state of the Topology Change Flag of this Bridge instance.
The time since last Topology Change occurred.
Refresh: Click to refresh the page immediately
Auto-refresh : Check this box to refresh the page automatically.
Automatic refresh occurs every 3 seconds
By clicking on CIST on above display, an additional display is shown below
(STP Detailed Bridge Status) This display provides detailed information on a single STP bridge
instance, along with port state for all active associated ports
Refer to next sub-section for more details
