Falcon M-Class | User Guide
439

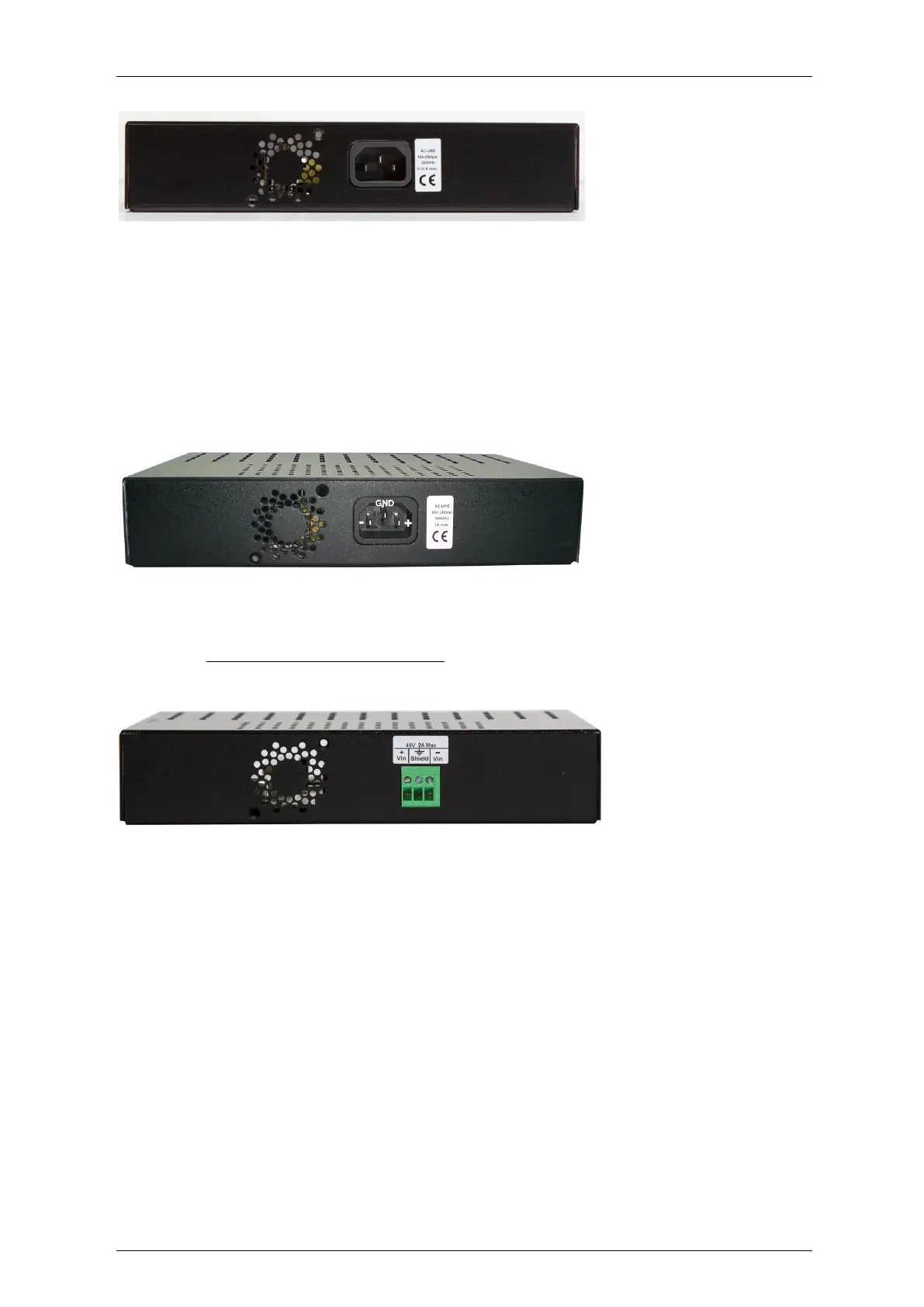

Figure 6-18: µFalcon-MX AC rear panel connector
6.6.2 DC Power Supplies
Connect DC line voltage using the power supply cords provided (alternatively you may use other
18AWG three wire cord). M-Class devices will accept any line voltage from 20 to 60VDCThere is no
ON/OFF switch on the device. When the power is connected to the device, the device is ON. This
will be indicated by the Power (PWR) LED lit green on the front panel.
Figure 6-19: µFalcon-MX rear panel 125VDC connector
The earthen conductor of power cord must be grounded
20 to – 60VDC Power Connection
The rear panel is equipped with a suitable screw connection (ST connector).
Figure 6-20: µFalcon-MX series DC PS rear panel ST connector
