4.8.4 QoS Egress Port Schedulers
This section provides an overview of QoS Egress Port Schedulers for all switch ports.

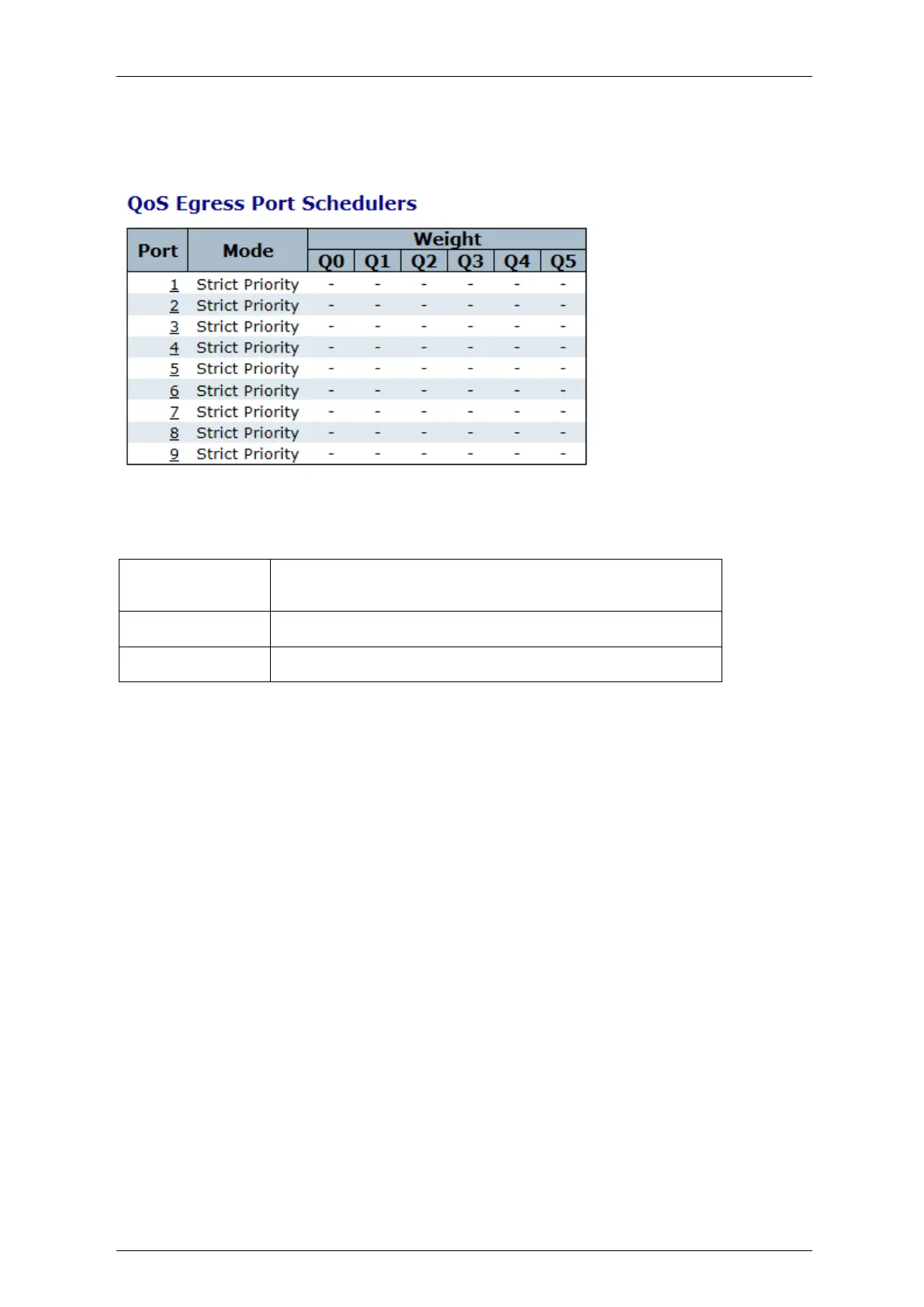

Figure 4-50: QoS Egress Port Schedulers
Table 4-48: QoS Egress Port Schedulers Parameters
Port
The logical port for the settings contained in the same row.
Click on the port number in order to configure the schedulers.
Mode
Shows the scheduling mode for this port.
Qn
Shows the weight for this queue and port.
By clicking on any listed port number, you may access to another display where you may configure
the QoS Egress Scheduler and Shapers for a specific selected port.
Refer to next page for an illustrated example
